双标准箱体尺寸&更全点间距覆盖
500×500mm、500×1000mm 两种箱体，灵活组合适配各类舞台布局。提供 P1.5625 至 P4.81 全规格，适配室内高清小间距、户外高亮租赁项目

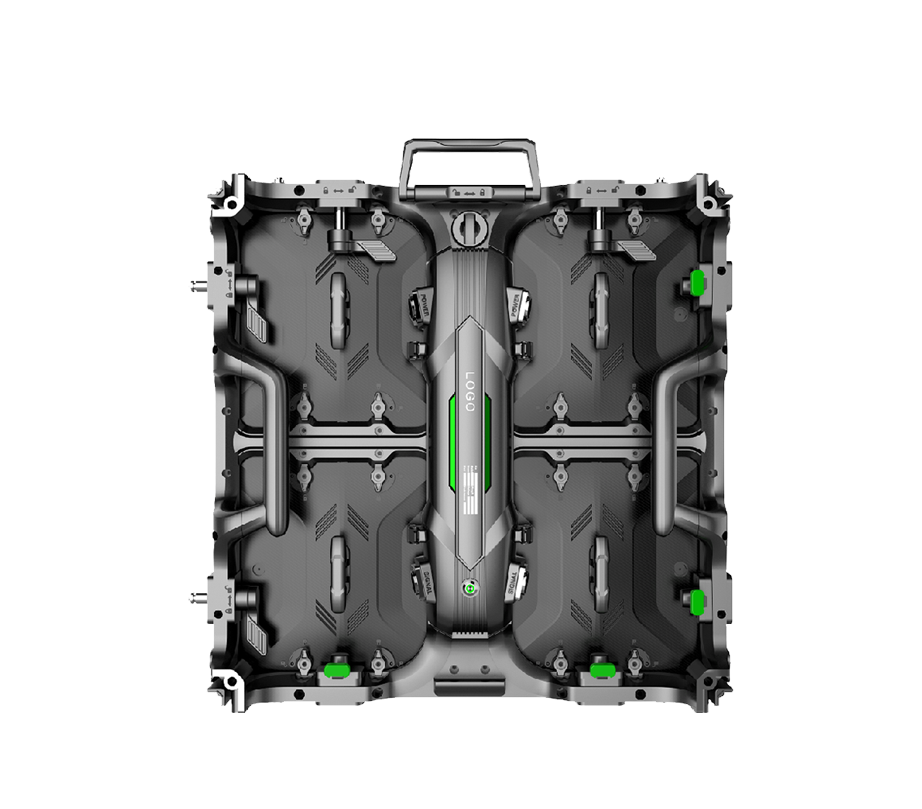

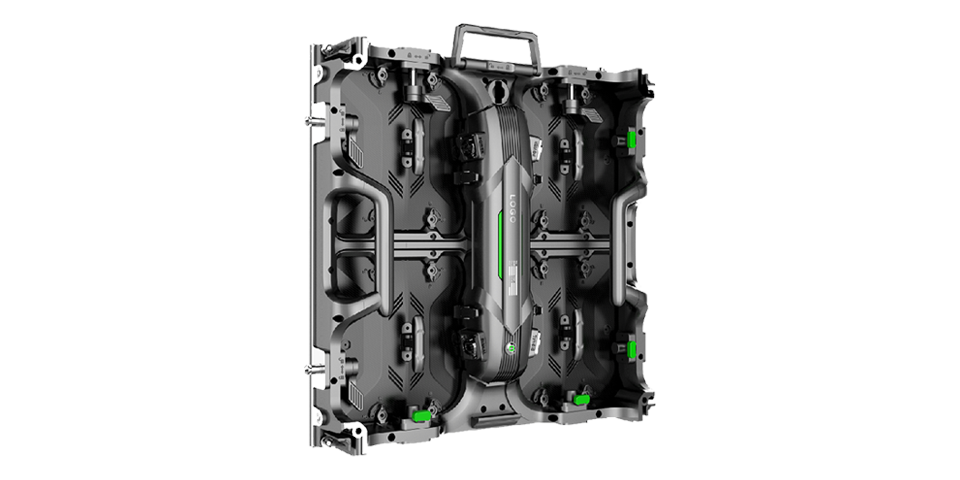

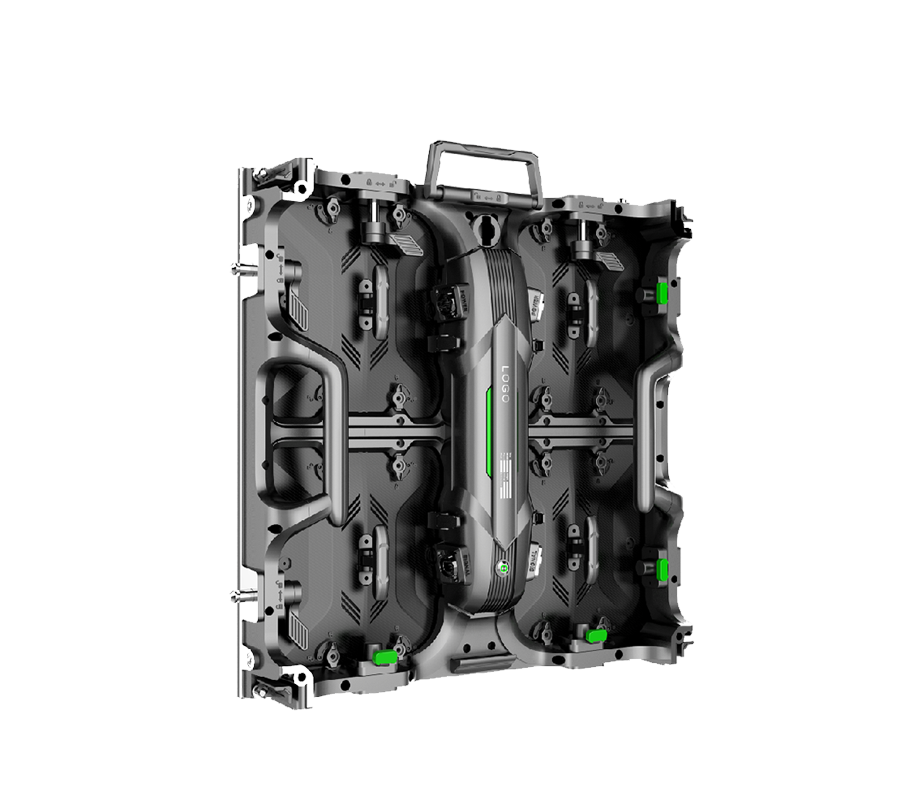

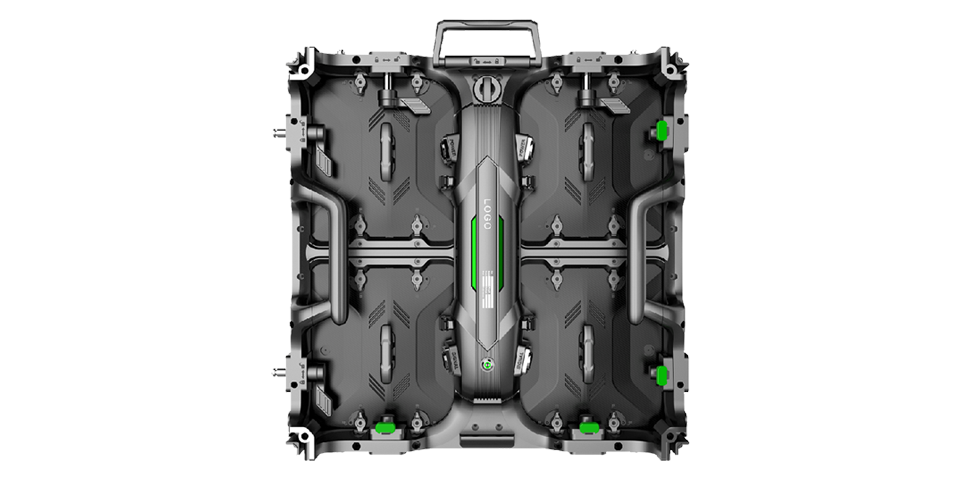

超轻超薄铝合金箱体

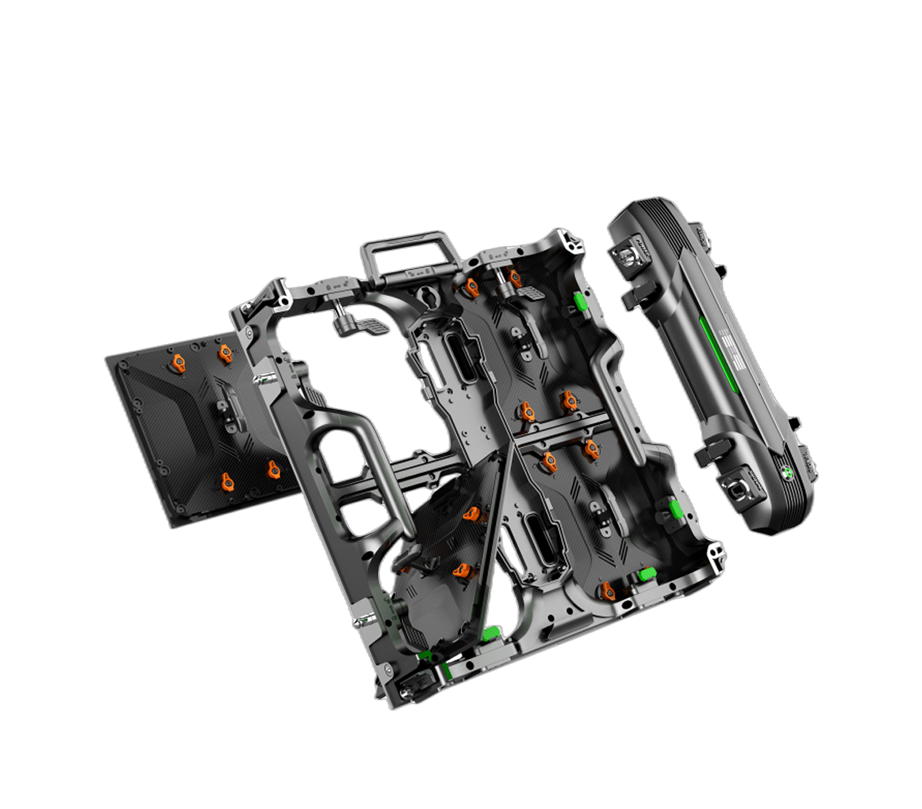

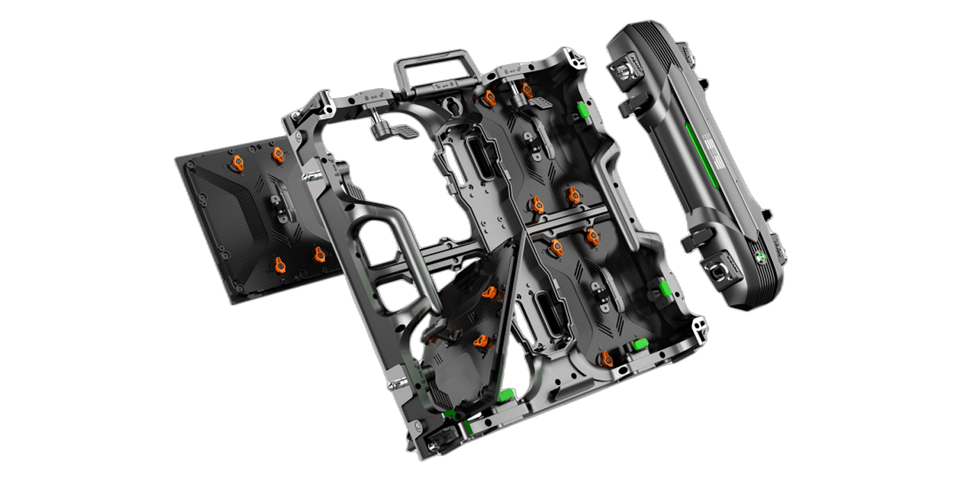

500mm 裸箱仅 3.4kg，1000mm 裸箱仅 5.8kg，68mm 超薄机身，支持前后双维护，适配安装空间狭小的场景
前后维护&室内户外通用

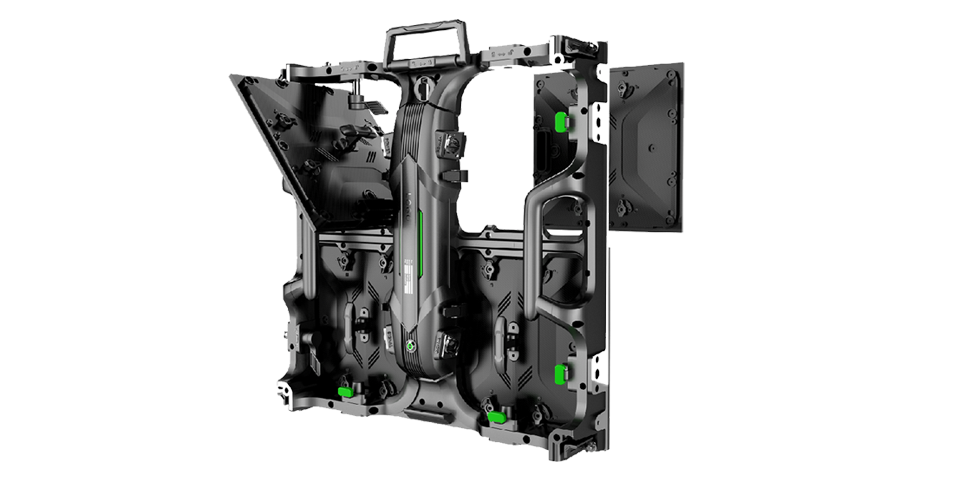

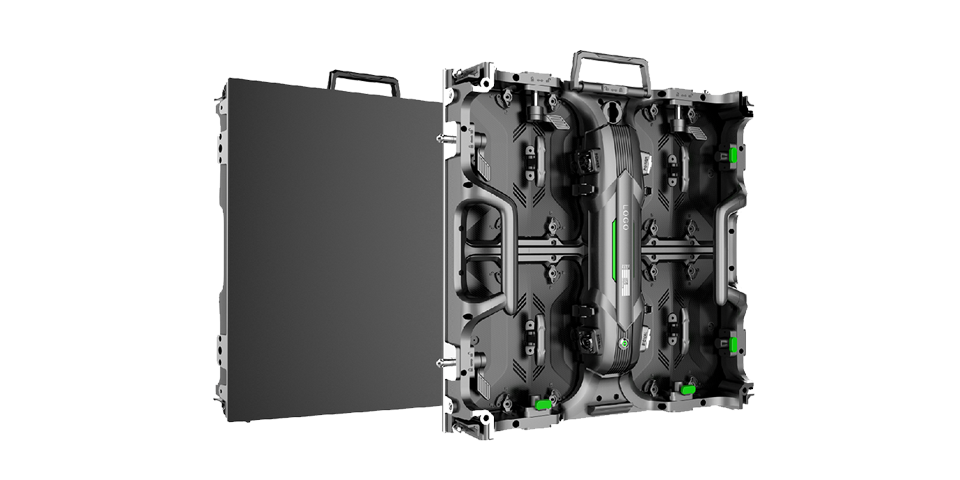

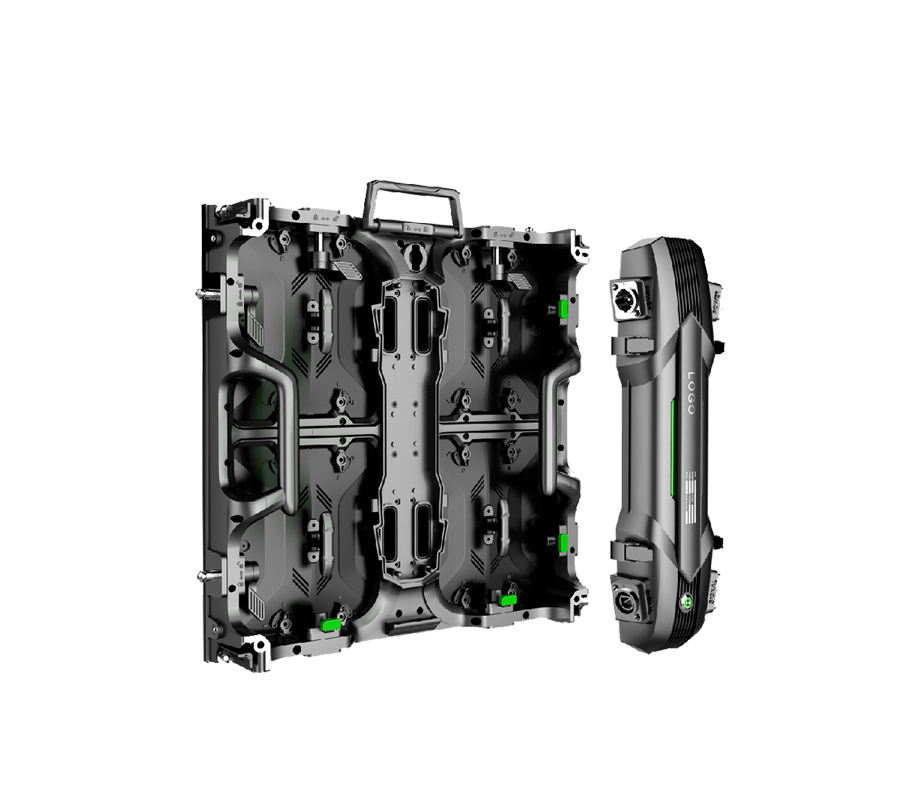

支持前后双维护，适配各类安装空间，省时易检修。可根据项目需求配置室内或户外版本。室内 / 户外通用，多场景重复租赁使用
快锁结构快速拆装
通过弧形锁结构实现内弧、外弧拼接，大幅提升现场搭建与拆卸效率，适合演唱会、发布会、高端舞美项目，带来更强的包围感与视觉冲击力
两种安装方式兼容
支持吊装、固定安装，适用于演出、展会、新品发布会等多种场景
45° 切角，造型灵活
支持切角造型，可实现直角转角、舞台包边、立体屏体和侧翼延展，让LED屏从平面显示升级为空间化视觉结构
Magic Series - Rental LED Screen (Indoor & Outdoor) Pixel Pitch(mm) P1.953 P2.604 P2.976 P3.91 P4.81 P2.604 P2.976 P3.91 P4.81 Module Size(mm) 250 * 250mm 250 * 250mm Brightness(cd/㎡) 600cd 800cd 1000cd 800cd 800cd 3500-4000cd LED Lamp 1515/1415 1515/1415 1515/1415 2121/2020 2121/2020 1415 1415 1921 1921 Module Resolution(dots) 128*128 96*96 84*84 64*64 52*52 96*96 84*84 64*64 52*52 Viewing Distance(m) ≧2.5m ≧2.5m ≧2.9m ≧3.9m ≧4.8m ≧2.6m ≧2.9m ≧3.9m ≧4.8m Scan 1/32 scan 1/32 scan 1/28 scan 1/16 scan 1/13 scan 1/32 scan 1/21 scan 1/16 scan 1/13 scan LED Driving Method Constant Current Constant Current Module Maximum Power (W) 35 28 40 Max.Power Consumption (W/㎡) 600 500 720 Average Power Consumption (W/㎡) 210 180 260 Power distribution(W/㎡) 740W(500*500 cabinet) / 552W(500*1000 cabinet) 1100W Product Thickness 77mm 84mm(With bottom shell and cabinet) Product Weight(KG/Cabinet) 4.6KG(500*500) / 9KG(500*1000) 4.6KG(500*500) / 9KG(500*1000) Curve Radian(outer arc) A single box can be adjusted between -5°and +5°with radian lock A single box can be adjusted between -5°and +5°with radian lock Module and HUB board Connection Connection Without Cable Connection Without Cable Anti-drop Module Design Anti-drop locks between the module and cabinet Anti-drop locks between the module and cabinet Operating Input Voltage(V) 4.6-5V 4.6-5V Gray Scale 13bits 13bits Brightness Adjustment 256 Brightness Levels 256 Brightness Levels Refresh Rate 1920/3840 1920/3840 Refresh Frame Frenquncy 60HZ 60HZ Cabinet Material Die-casting Aluminum Cabinet Die-casting Aluminum Cabinet Maintenance Way Front/Rear(Both/Either One) Front/Rear(Both/Either One) Ingress Protection IP40 IP54 Continuous Use Time >72h >72h Life Span 100,000h 100,000h MTBF >10,000h >10,000h Blind Spot Rate <0.01% <0.01% Operating Temperature -20℃～+50℃(Below -20 degrees could be customized) Operating Humidity Indoor 10%～60% Outdoor 10%～90%
租赁屏
Magic魔法系列
LED租赁屏（户内 & 户外）
尺寸：500x500mm/500x1000mm
像素间距：
P1.953/ P2.604/ P2.976/ P3.91/P4.81mm（户内）
P2.604/P2.976/P3.91/P4.81mm（户外）
快速组装和拆卸
支持前/后维护
支持户内/户外使用
应用领域：舞台、音乐节、演唱会、电子竞技比赛、展览
