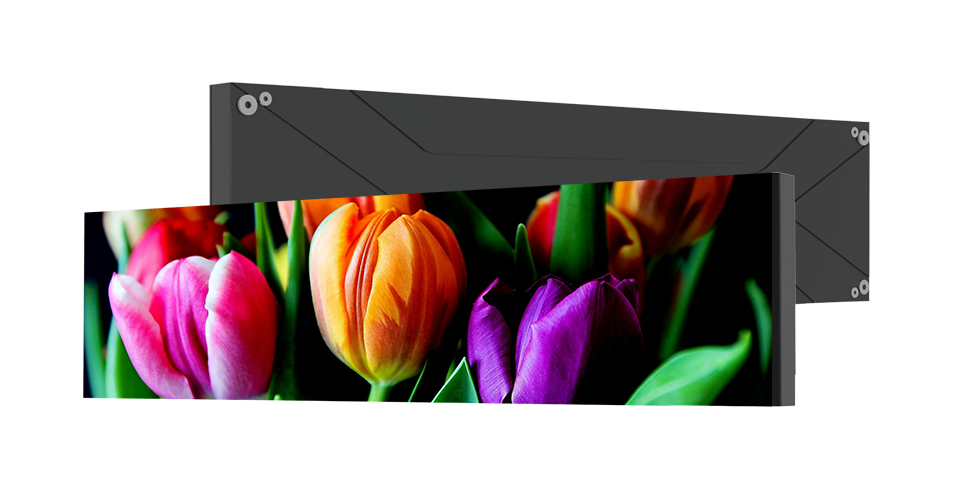

5000:1 高对比度
采用优质黑色LED灯搭配黑色面罩，对比度高达5000:1，使画面更加细腻、清晰、鲜艳
高灰阶、高刷新率
高灰阶，色彩细节完美呈现，高刷新，有效消除摩尔纹

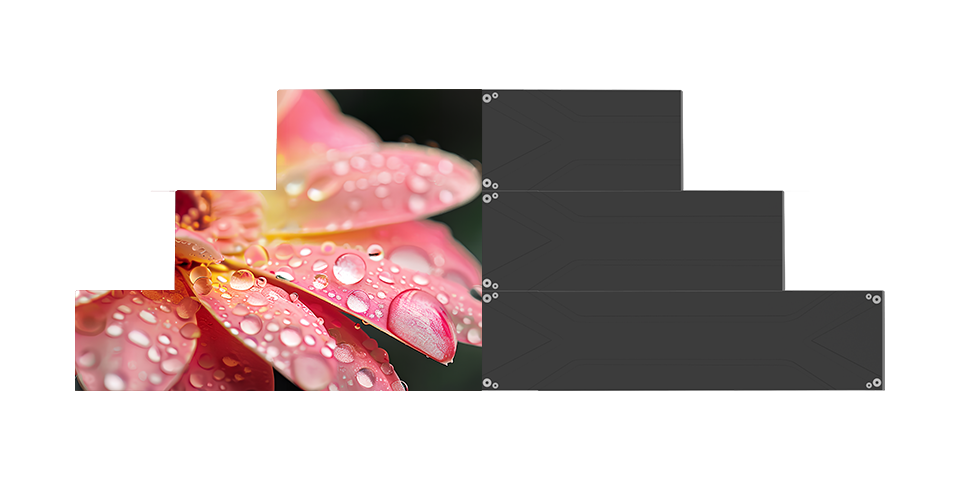

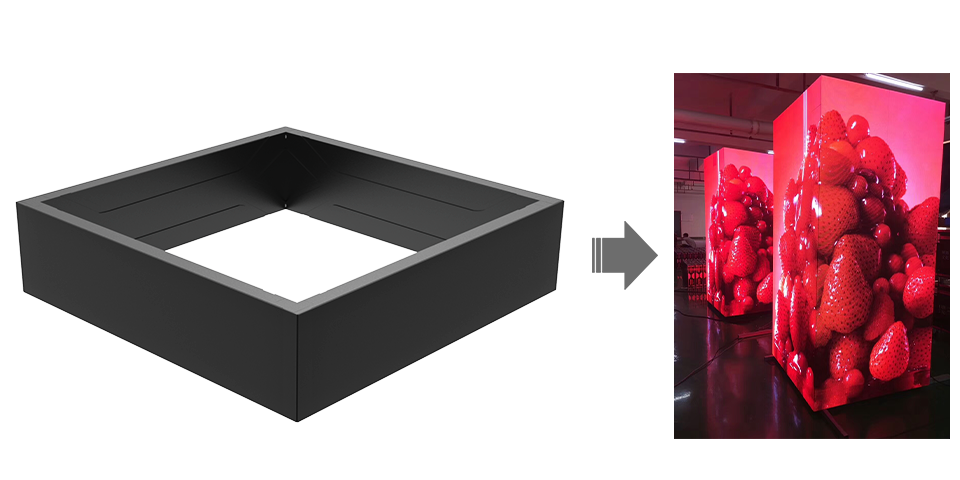

创意安装
超轻超薄，厚度仅42mm，可轻松进行角度拼接，轻松拼装矩形或其他形状

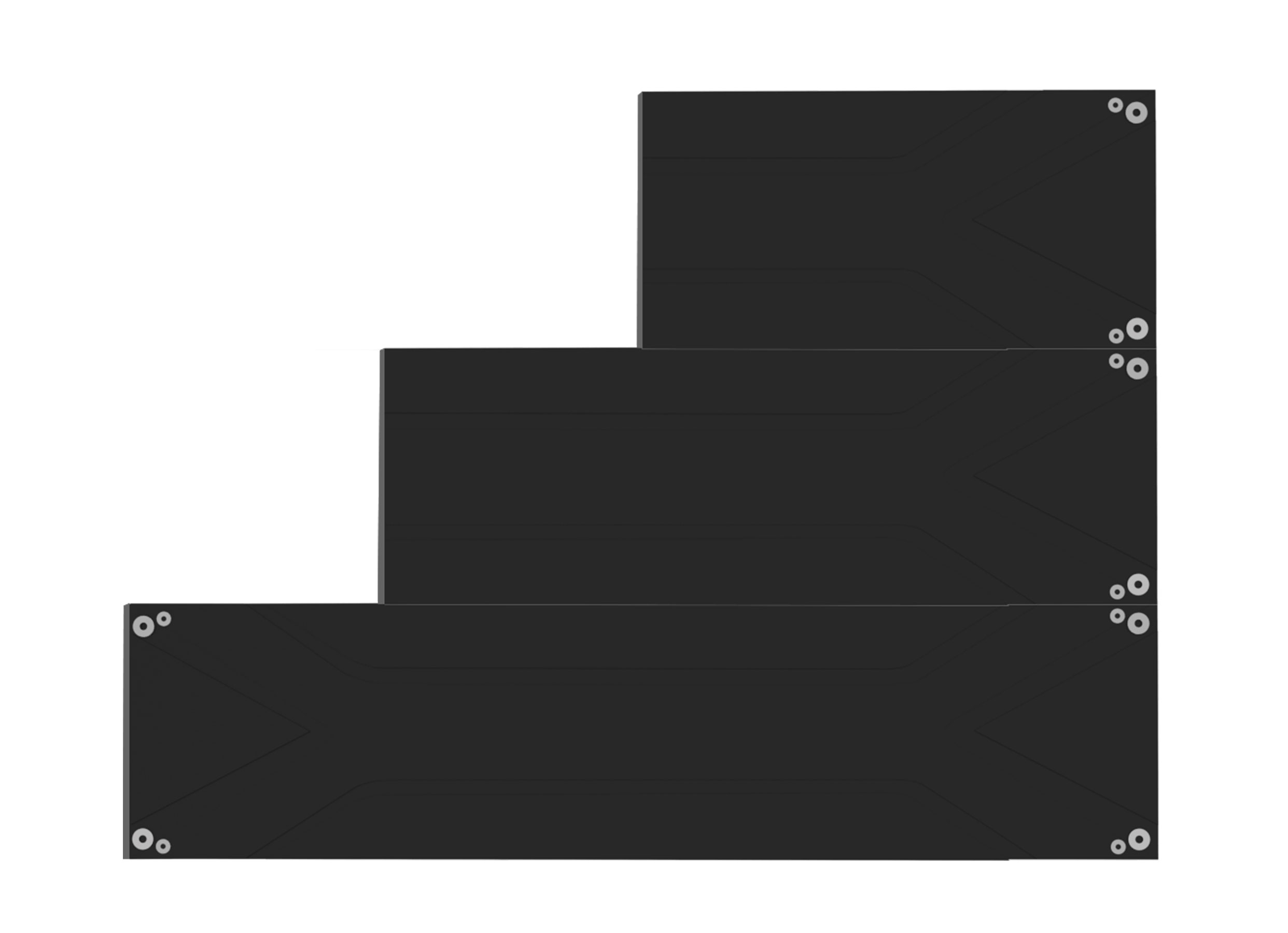

提供不同尺寸的箱体
250*500mm /250*750mm /250*1000mm 或定制尺寸，不同尺寸箱体满足不同应用场景的需求

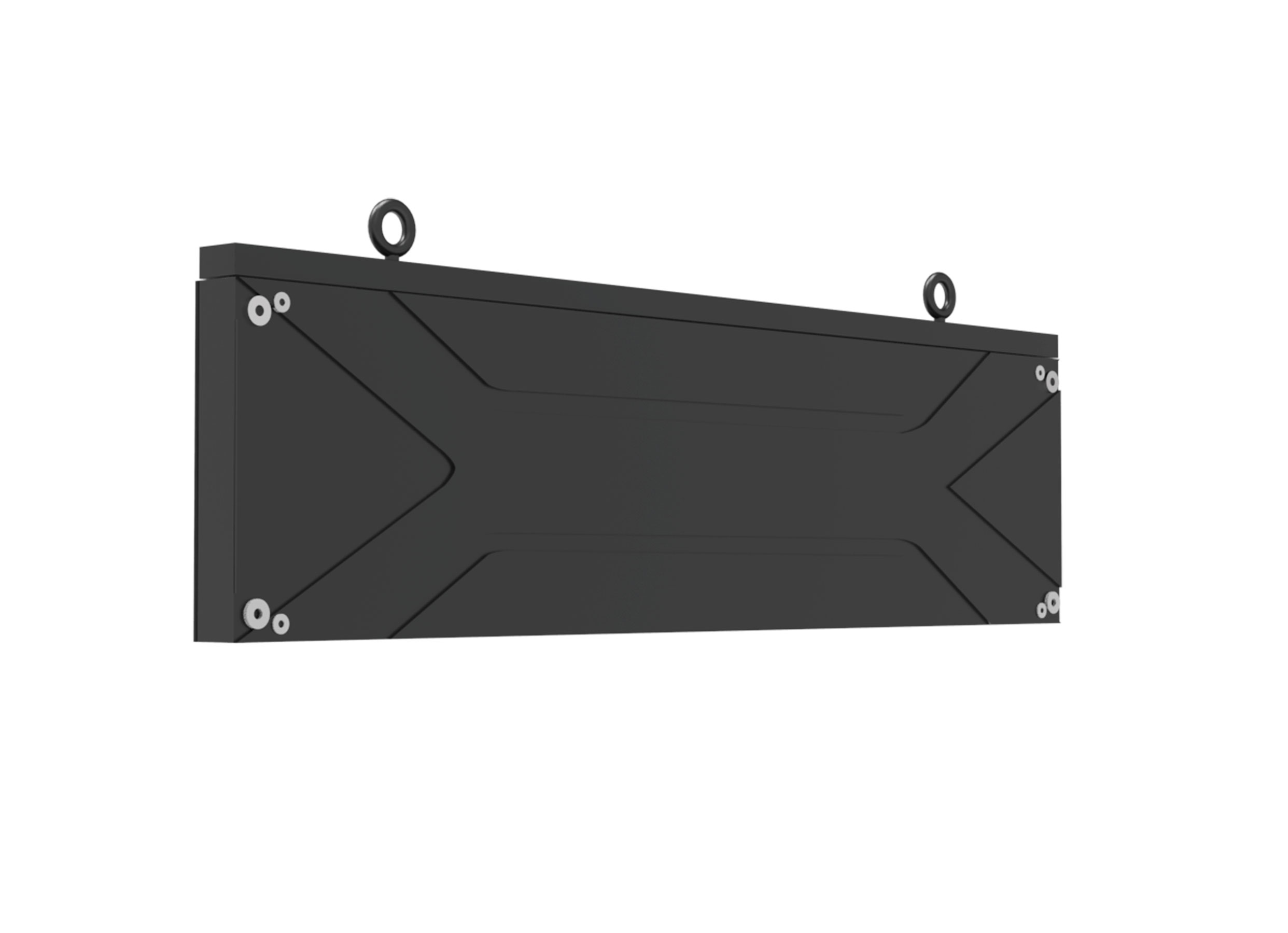

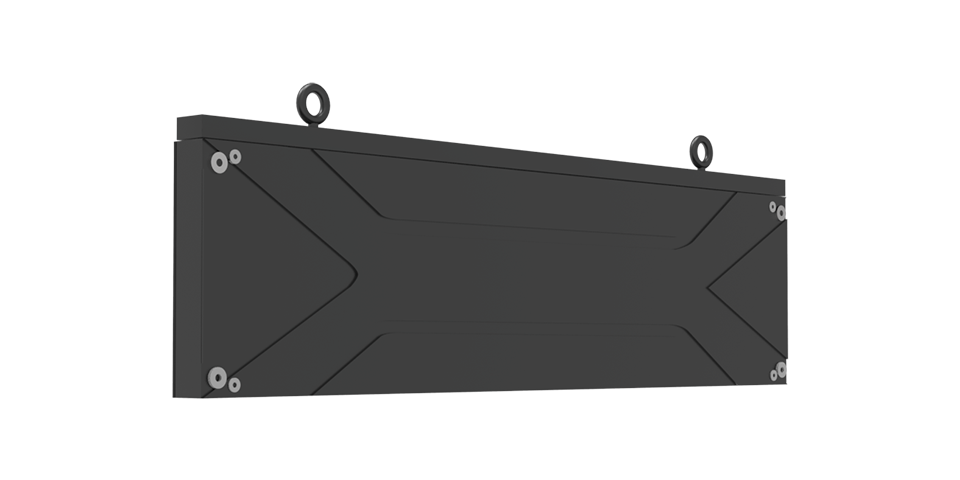

悬挂安装
支持多种安装方式，压铸铝结构，坚固耐用重量轻，安装更简单，且不易变形
UT series - Indoor Front Service
Pixel Pitch(mm) P1.953 P2.604 (With Mask) P2.976 (With Mask) P3.91 (With Mask) P4.81 (With Mask) Module Size(mm) 250*250mm Cabinet Size(mm) 1000*250/ 750*250/ 500*250 Brightness(cd/㎡) 600cd 800cd 1000cd 800cd 800cd LED Lamp 1515/1415 1515/1415 1515/1415 2121/2020 2121/2020 Module Resolution(dots) 128*128 96*96 84*84 64*64 52*52 Viewing Distance(m) ≧2.5m ≧2.5m ≧2.9m ≧3.9m ≧4.8m Scan 1/32 scan 1/32 scan 1/28 scan 1/16 scan 1/13 scan LED Driving Method Constant Current Module Maximum Power(W) 35 28 Max.Power Consumption(W/㎡) 600 500 Average Power Consumption(W/㎡) 210 180 Power distribution(W/㎡) 740W Product Thickness 60mm(With bottom shell and cabinet) Product Weight(KG/Cabinet) 6.5KG/250*1000mm cabinet Right Angle Cabinet Support 90° angle Operating Input Voltage(V) 4.6-5V Gray Scale 13bits Brightness Adjustment 256 Brightness Levels Refresh Rate 1920/3840 Refresh Frame Frenquncy 60HZ Cabinet Material Die-casting Aluminum Cabinet Maintenance 100% Front Ingress Protection IP40 Continuous Use Time >72h Life Span 100,000h MTBF >10,000h Blind Spot Rate <0.01% Operating Temperature -20℃～+50℃(Below -20 degrees could be customized) Operating Humidity Indoor 10%～60%
固装
UT系列
户内前维护
尺寸:250*500mm/250*750mm/250*1000mm
像素间距:P1.95/P2.6/P2.97/P3.91/P4.81
超轻超薄
前维护，维护方便
无缝拼接，室内SMD的完美选择
应用：商场、电影院、办公空间
