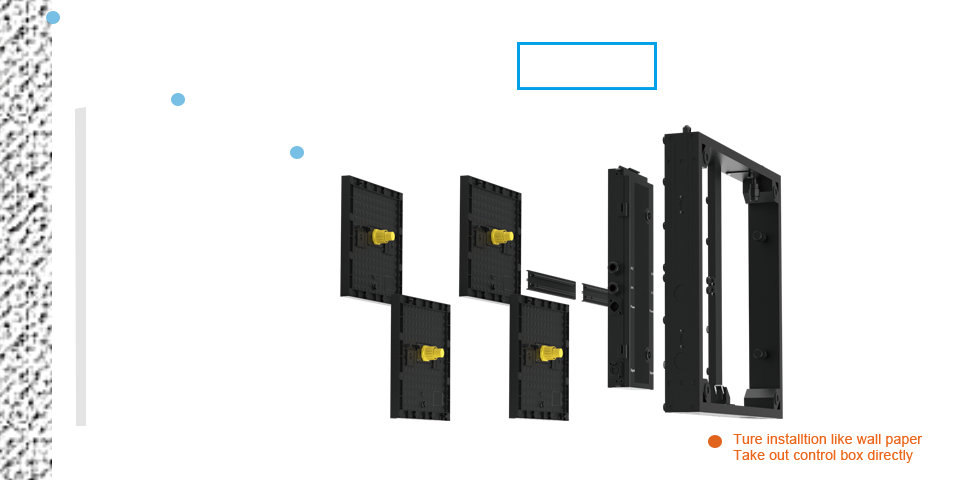

全前维护
全前维护设计，贴墙式安装

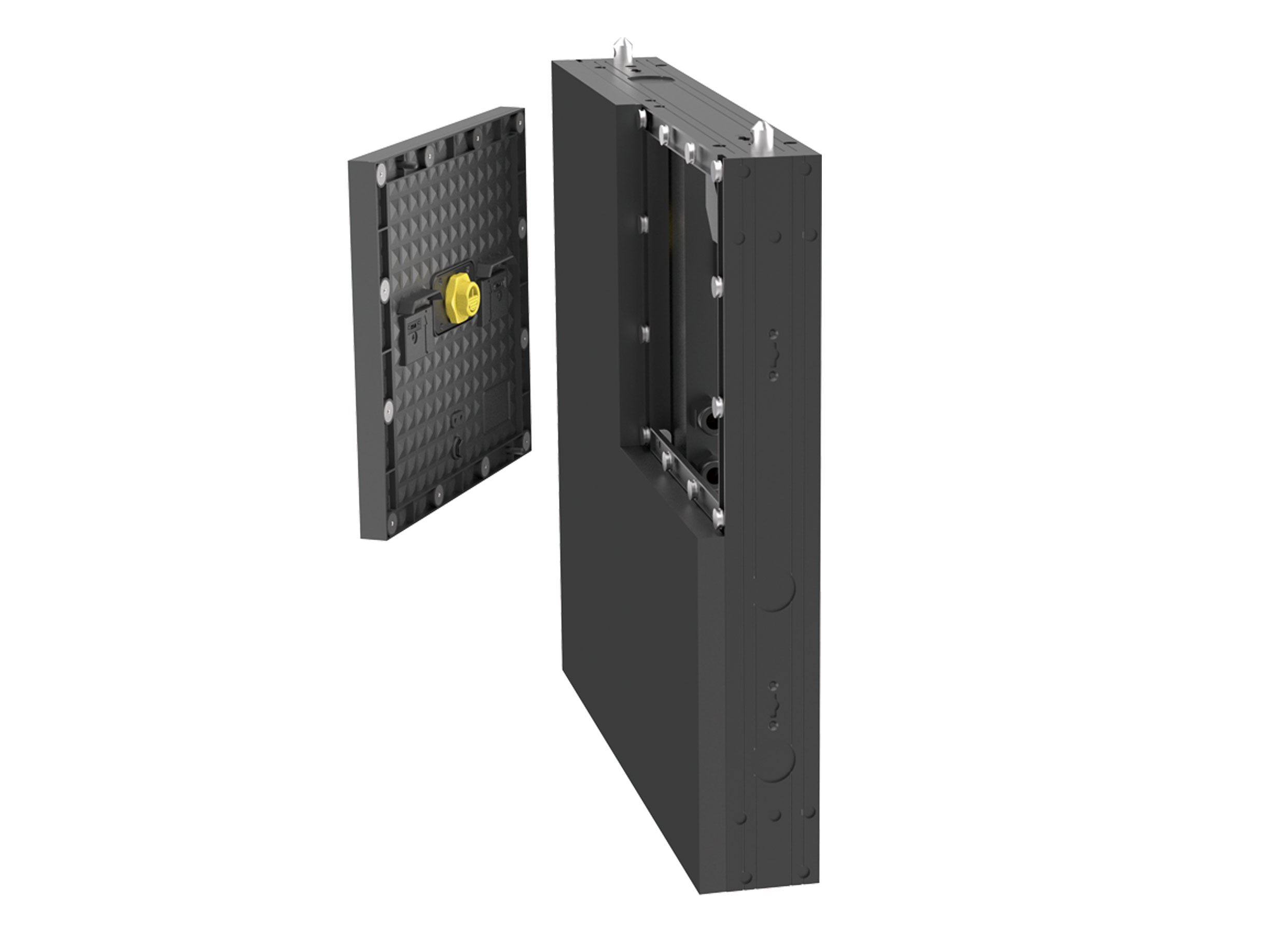

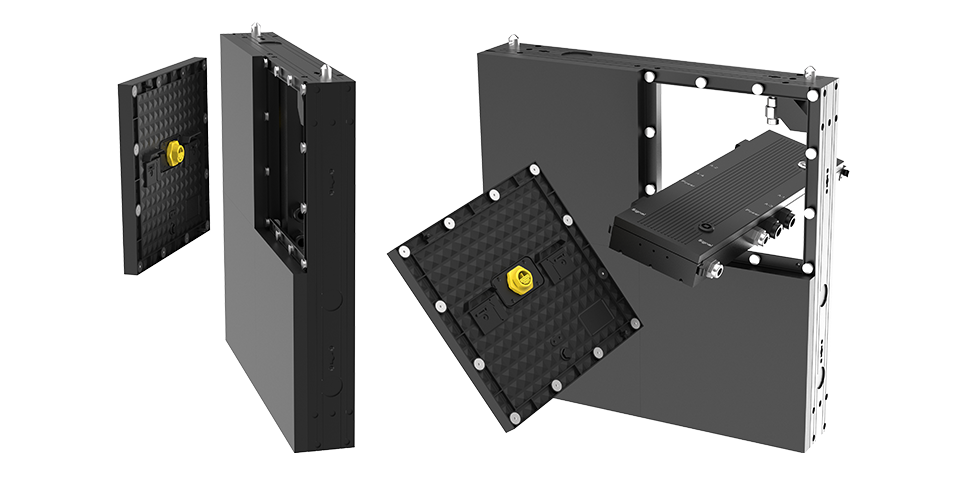

一体化设计
模组+控制盒，模块化设计

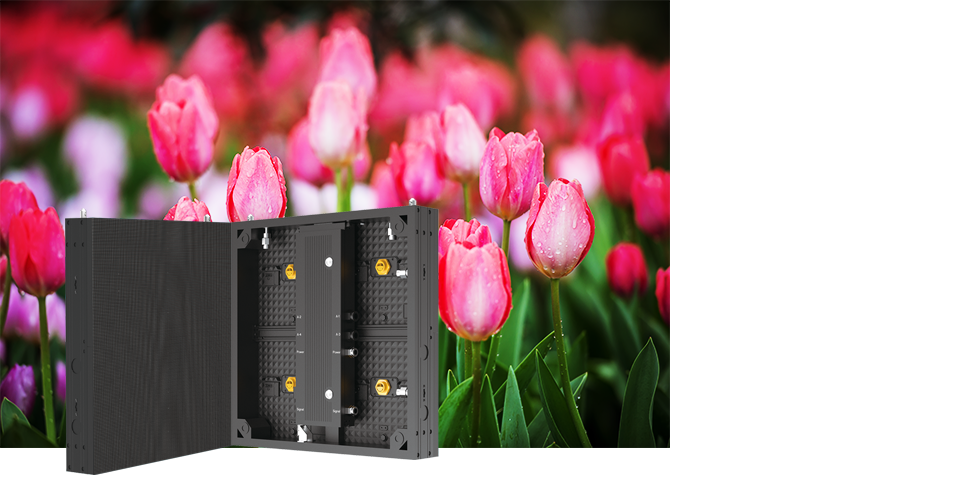

高对比度
高对比度 6000:1
高亮度
超高亮度5500nits户外小间距

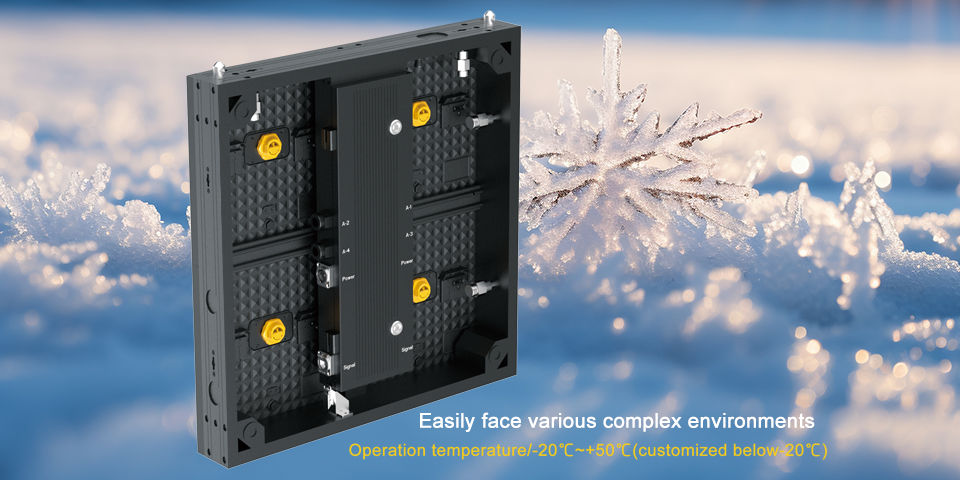

耐高低温
可承受 -20°C 至 50°C 的极端天气

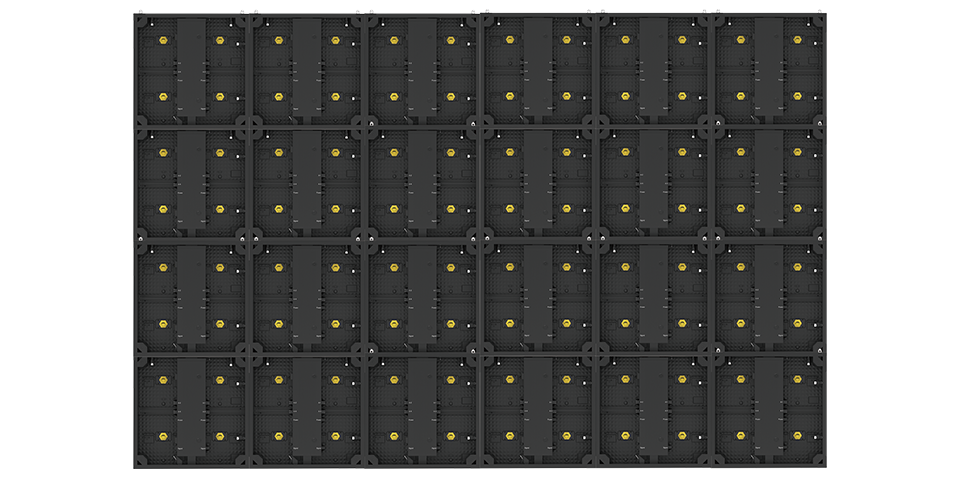

轻松定制不同尺寸
轻松定制不同的箱体尺寸，以适应各种屏幕尺寸

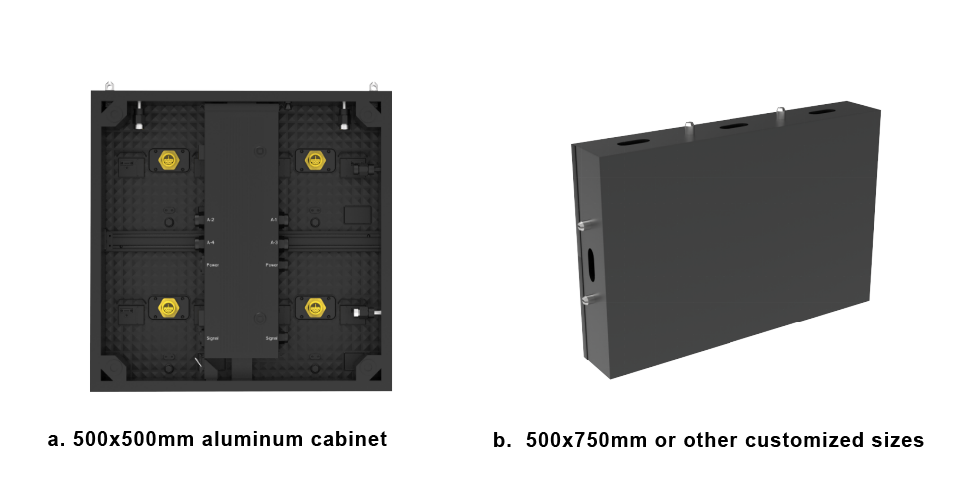

定制尺寸
型材铝箱体，支持灵活的箱体尺寸定制

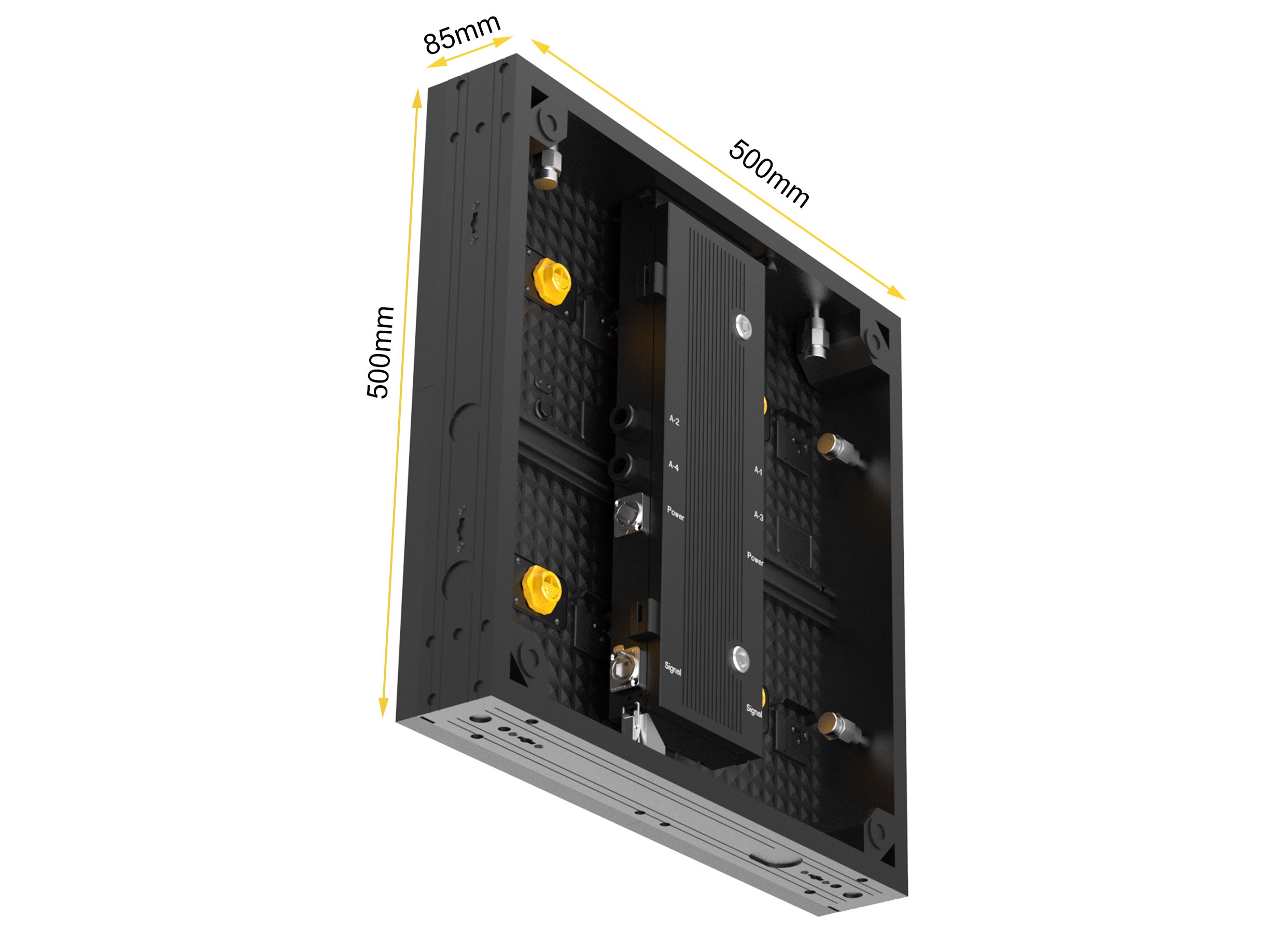

Mercury Series - Outdoor Fine Pitch LED displays Pixel Pitch(mm) 2.5mm Cabinet Size W500*H1000*85MM W500*H500*85MM Pixel Density(dots/㎡) 160000 Brightness(cd/㎡) 3000-5500cd adjustable LED Lamp Outdoor SMD1515 Module Size 250*250mm Module Resolution(dots) 100*100 Average Power Consumption(W/㎡) 250W Average Power Consumption(W/㎡) 720w Viewing Distance(m) ≧2.5m Scan 1/25 scan Product Weight(KG/㎡) 36 kg 40kg LED Driving Method High Refresh Constant Current,ICND2165B/SM16380 Module Thickness 20mm Maintenance Way Front/Rear Package Module/Cabinet Packed Alone Pixel Composition 1R 1G 1B Operating Input Voltage(V) 4.5-5V Contrast Ratio 4000:1 Gray Scale ≥14bits Brightness Adjustment Manual 256 Levels Refresh Frame Frenquncy 60HZ Refresh Rate 3840HZ Ingress Protection IP65 Transmission Distance HSYV-5E≦130MMultimode Fiber≦500MSinglemode Fiber≦10KM Continuous Use Time >72h Life Span 100,000h MTBF >10,000h Blind Spot Rate <0.01% Operating Temperature -20℃～+50℃(Customized below—20℃) Operating Humidity Outdoor 10%～85%

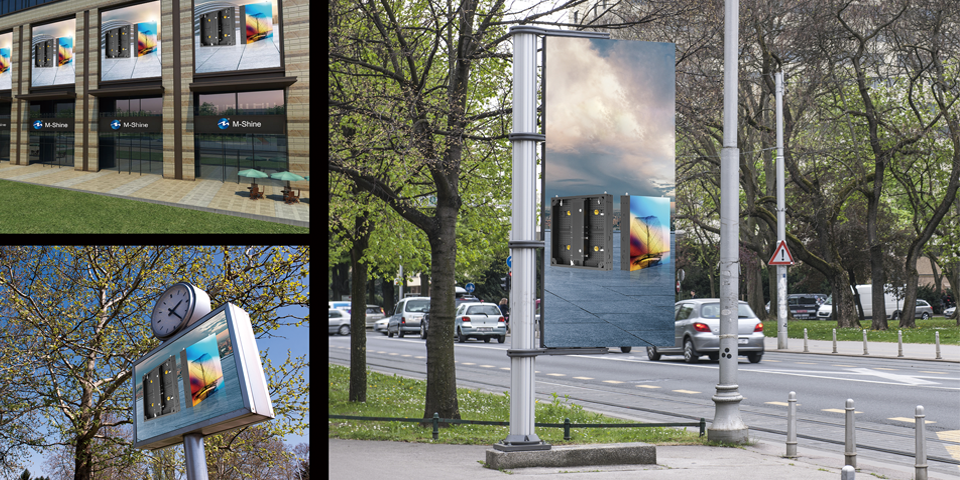

室外高清
