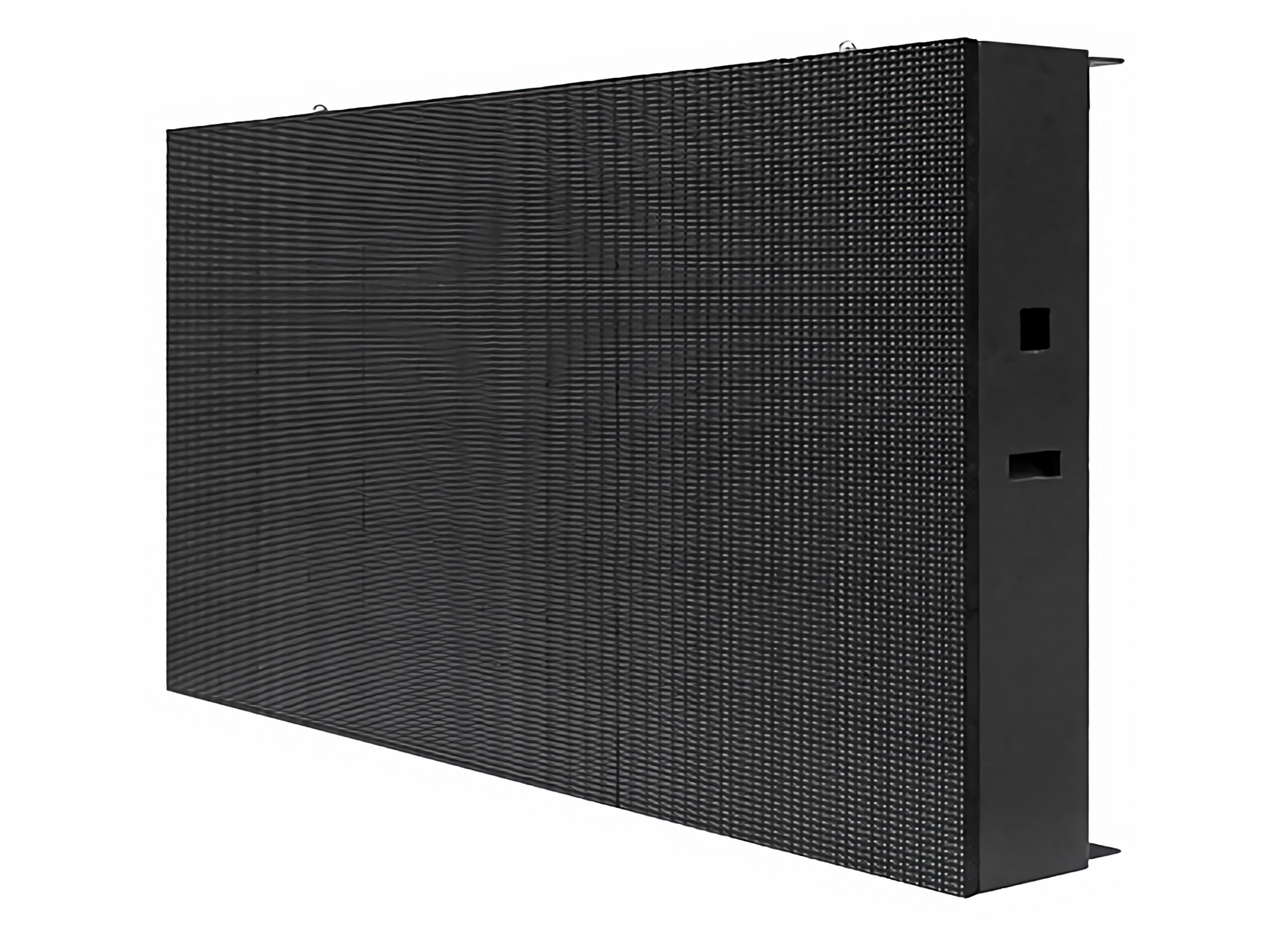

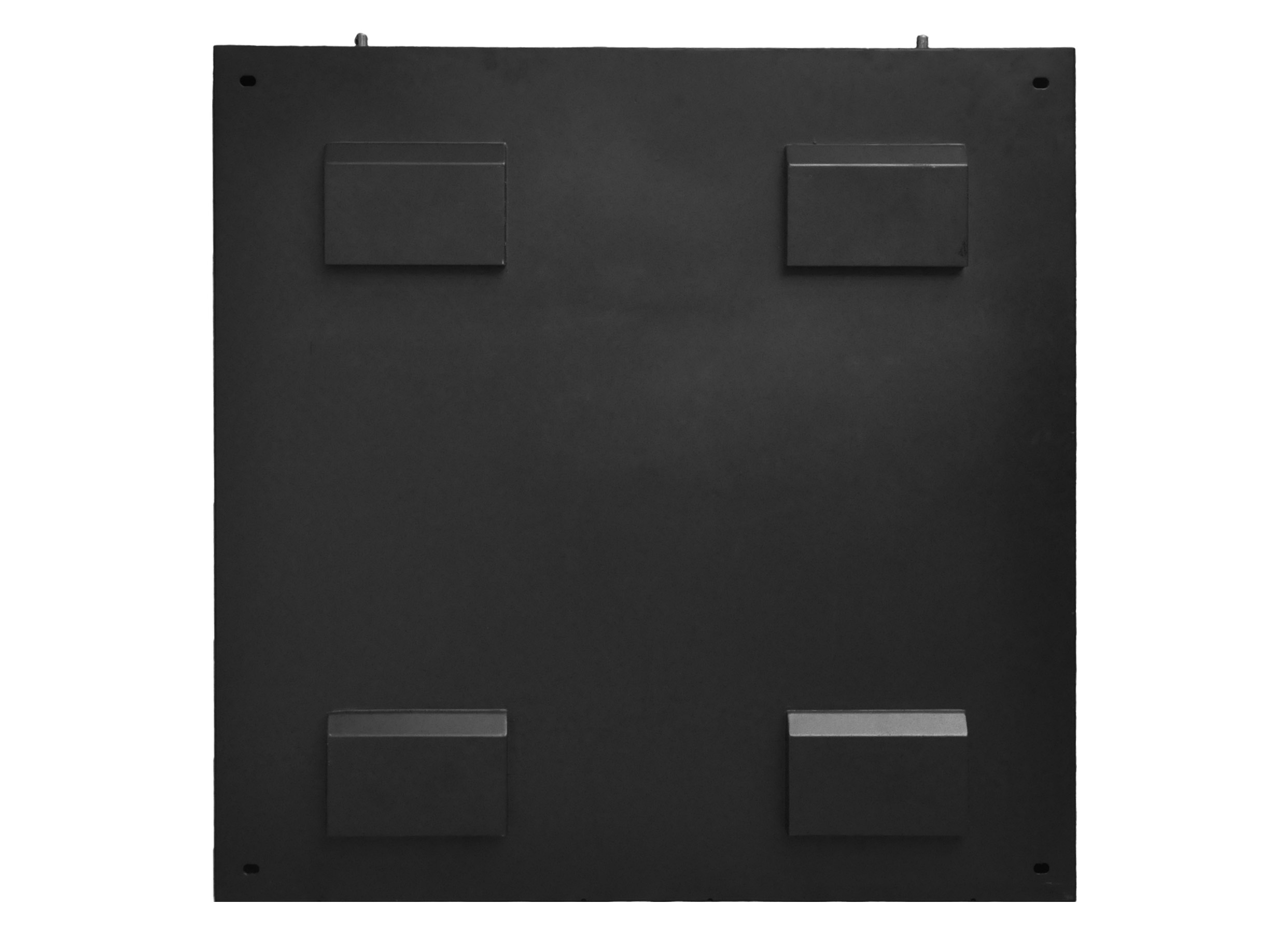

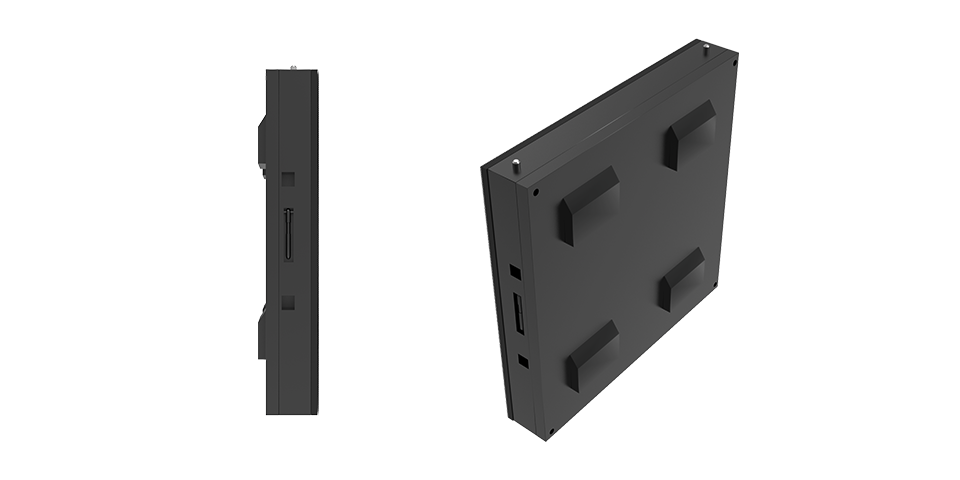

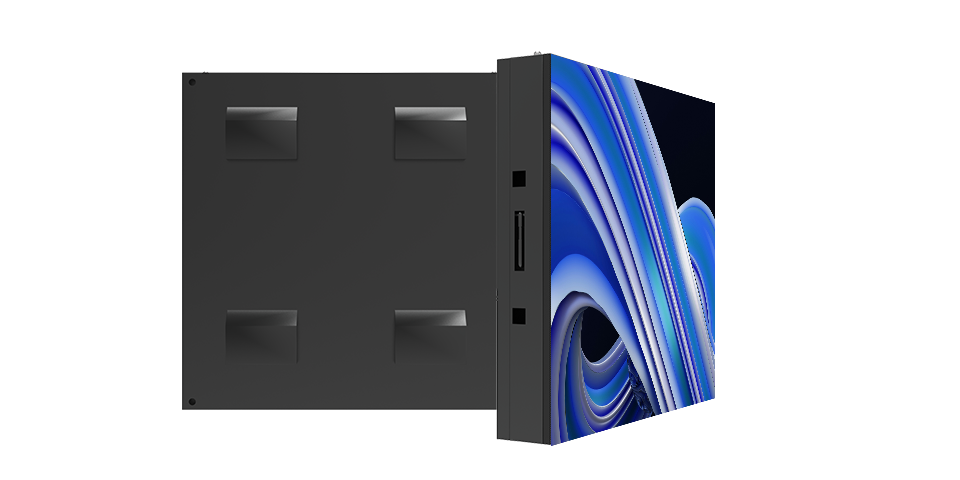

Rock磐石系列

固装

尺寸：960 * 960mm 和定制

像素间距：P5.33/P6.67/P8/P10/P16/P20

SMD 或 DIP 可选

箱体尺寸自由定制

铁/钢/铝箱体可选

质量稳定，成本更低

应用领域：建筑外墙、建筑屋顶、户外广告、户外标牌等

Rock Series - Classic Outdoor Front Service
SMD/DIP	SMD				DIP
Pixel Pitch(mm)	P5.33	P6.67	P8	P10	P10	P16	P20
Pixel Density(dots/㎡)	35156	22500	15625	10000	10000	3906	2500
Brightness(cd/㎡)	5500cd	5500cd	5500cd	6500cd	6500cd	7000cd	6500cd
LED Lamp	SMD1921	SMD2727			DIP346
Cabinet Size(mm)	960*960 or customized
Module Size(mm)	320*320
Module Resolution(dots)	60*60	48*48	40*40	32*32	32*32	20*20	16*16
Viewing Distance(m)	≧5m	≧6m	≧8m	≧10m	≧10m	≧16m	≧20m
Scanning Method	1/6 scan	1/6 scan	1/4 scan	1/2 scan	1/4 scan	Static State	Static State
Cabinet Size(mm)	960*960
Cabinet Resolution(dots)	180*180	144*144	120*120	96*96	96*96	60*60	48*48
Module Maximum Power(W)	74				42	55	45
Power distributionr(W/cabinet)	830				550
Max.Power Consumption (W/cabinet)	660W				380W	490W	405W
Average Power Consumption (W/cabinet)	230W				135W	170W	140W
Pixel Composition	1R1G1B
Operating Input Voltage(V)	5V
Gray Scale	≥14bits
Brightness Adjustment	256 Brightness Levels
Refresh Rate	Constant Current IC 1920/High Brush IC 3840
Refresh Frame Frenquncy	60HZ
Cabinet Material	Die-casting aluminum/Iron/Aluminum
Maintenance	Front/Rear
IP	IP65
Continuous Use Time	>72h
Life Span	100,000h
MTBF	>10,000h
Blind Spot Rate	<0.01%
Operating Temperature	-20℃～+50℃(Below -20 degrees could be customized)
Operating Humidity	Outdoor 10%～90%
