令人惊叹的响应灵敏度
互动LED地砖屏，采用高分辨率追踪技术，单块面板上置入过百个传感器，小面积多重追踪，互动效果令人惊叹
难忘的互动感受
15毫秒快速响应、数据流量实时传输至内容服务器，互动体验令人难忘
户外 IP68 防护等级，室内 IP54 防护等级
无论户内或户外地砖屏都需要防水，明兴光户内地砖模组依然采用户外标准，所有螺丝孔位均用三防漆封胶，确保防水性能
出色的载重能力

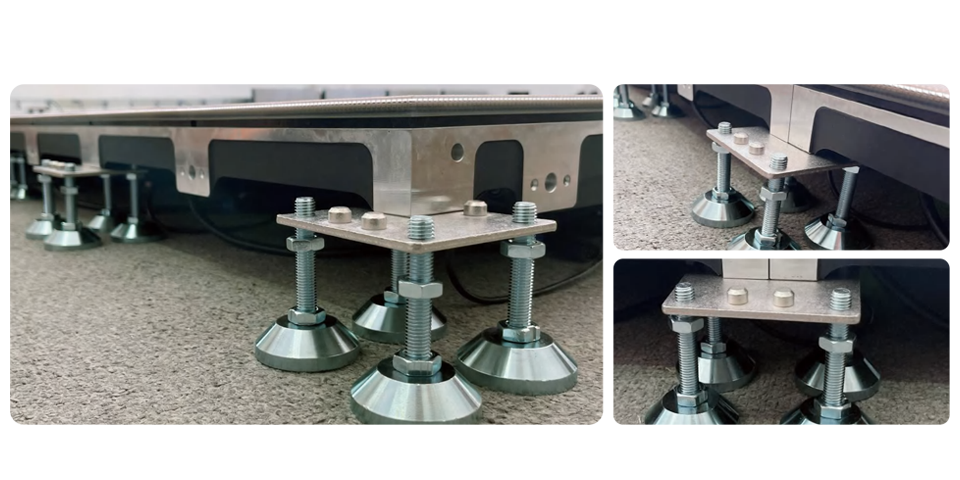

增加每台箱体下方的承重柱数量，保证整屏的韧性和强度，确保1.5吨的单平米承重，且保证当屏体表面重力增加时，立柱不断裂

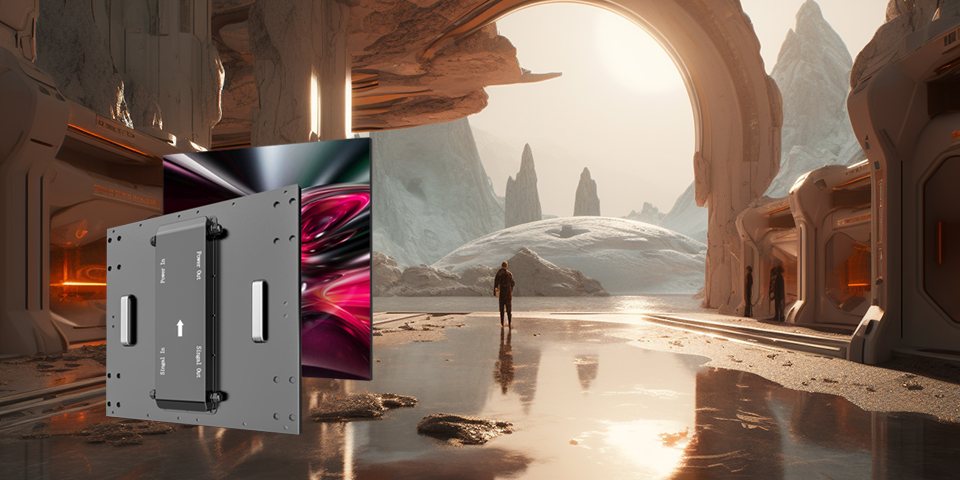

360°沉浸式效果
LED地砖屏是360°沉浸式房间及XR项目的重要组成部分，结合灯光、环绕声，增加访客与虚拟空间互动时的空间真实感和沉浸感
创造惊喜时刻

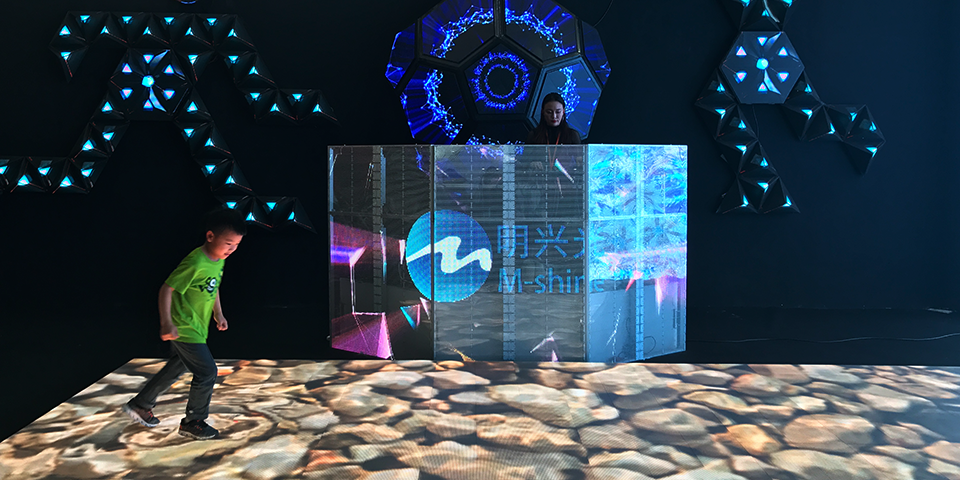

为体验有趣的互动游戏提供令人兴奋的游乐场，每个参与者的动作都会被追踪并显示在地砖和墙面屏上。通过接触和触摸触发响应，人们喜欢这种感觉
Creative Series - Interactive Floor LED display Application Indoor Outdoor Pixel Pitch(mm) P2.5 P2.604 P2.976 P3.91 P4.81 P5.2 P6.25 P3.91 P4.81 P5.2 P6.25 P7.81 Module Size(mm) 250*250mm 250*250mm Cabinet Size(mm) 500*500 / 500*1000 1000-1500cd Brightness(cd/㎡) 1000-1500cd 3000-3500cd LED Lamp 1415 1921 1921 1921 1921 2727 2727 Module Resolution (dots) 100*100 96*96 84*84 64*64 52*52 48*48 40*40 64*64 52*52 48*48 40*40 32*32 Viewing Distance(m) ≧2.5m ≧2.5m ≧2.9m ≧3.9m ≧4.8m ≧5.2m ≧6.25m ≧3.9m ≧4.8m ≧5.2m ≧6.25m ≧7.81m Scanning Method 1/25 scan 1/32
scan1/28
scan1/32
scan1/26
scan1/24
scan1/20
scan1/16
scan1/13
scan1/12
scan1/10
scan1/8 scan LED Driving Method Constant Current Constant Current Module Maximum Power (W) 35 52 Max.Power Consumption (W/㎡) 640 900 Average Power Consumption (W/㎡) 230 320 Power Distribution (W/㎡) 800 1200 Product Thickness (mm) Module + cabinet: 78mm；Screen + Floor Support: 150~170mm adjustable or customized Product Weight (KG/Cabinet) 11KG(500*500) / 22KG(500*1000) 12KG(500*500) / 24KG(500*1000) Module and HUB board Connection Cable Cable Pixel Composition 1R1G1B 1R1G1B Operating Input Voltage(V) 4.6-5V 4.6-5V Gray Scale 13bits 13bits Brightness Adjustment 256 Brightness Levels 256 Brightness Levels Refresh Rate 1920/3840 1920/3840 Refresh Frame Frenquncy 60HZ 60HZ Cabinet Material Sheet Metal Iron/Aluminium；Profile Aluminium Sheet Metal Iron Maintenance Way Front(cabinet),Rear(module) Front(cabinet),Rear(module) Ingress Protection IP54(Front)/IP43(Back) IP67(Front)/IP66(Back) Transmission Distance HSYV-5E≦130MMultimode Fiber≦500MSinglemode Fiber≦10KM HSYV-5E≦130MMultimode Fiber≦500MSinglemode Fiber≦10KM Continuous Use Time >72h >72h Life Span 100,000h 100,000h MTBF >10,000h >10,000h Blind Spot Rate <0.01% <0.01% Operating Temperature -20℃～+50℃(Below -20 degrees could be customized) Operating Humidity Indoor 10%～60% Outdoor 10%～90% Ultimate Load-bearing 1.5t/㎡1545/N(At single point) 1.5t/㎡1545/N(At single point) Friction Coefficient Static Friction Coefficient 0.79/Us Kinetic Friction Coefficient 0.71/UD Static Friction Coefficient 0.79/Us Kinetic Friction Coefficient 0.71/UD

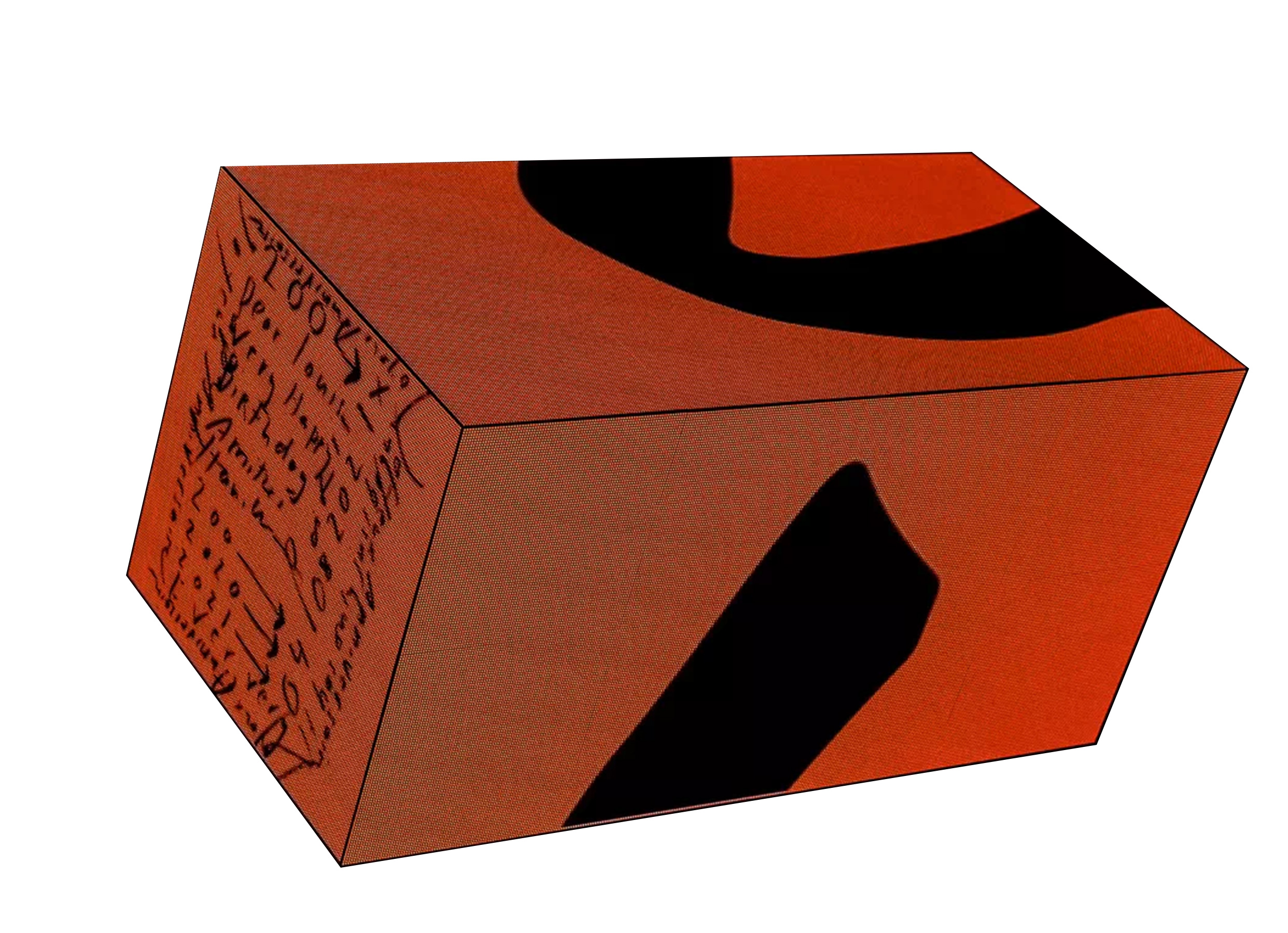

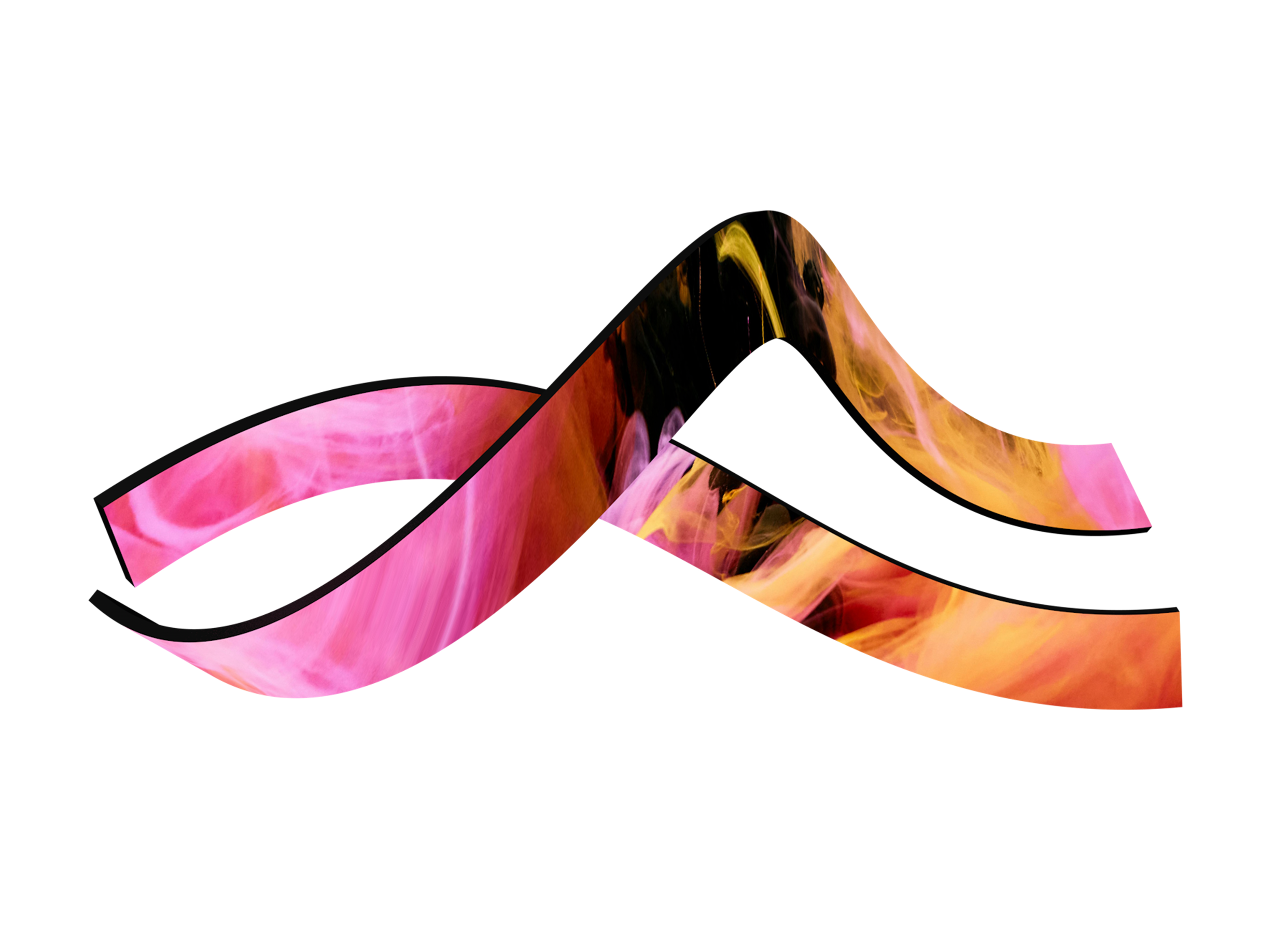

异形屏
创意LED屏系列

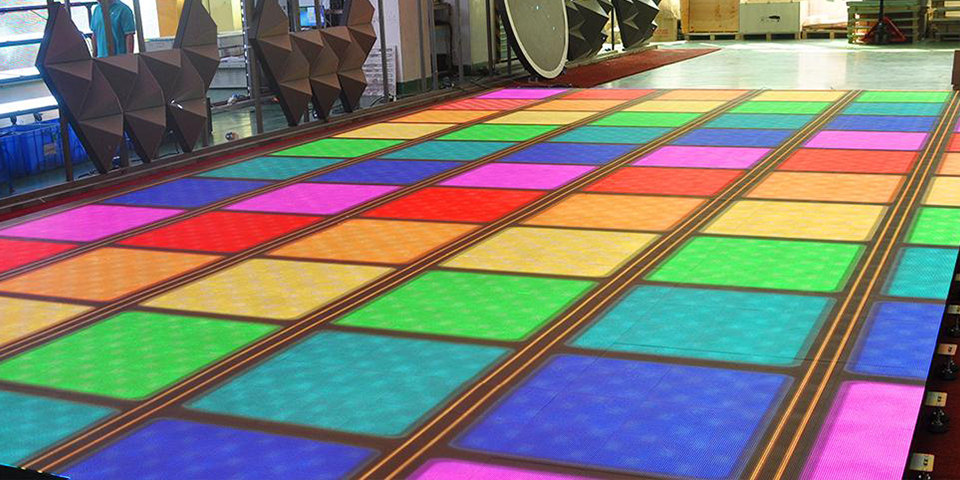

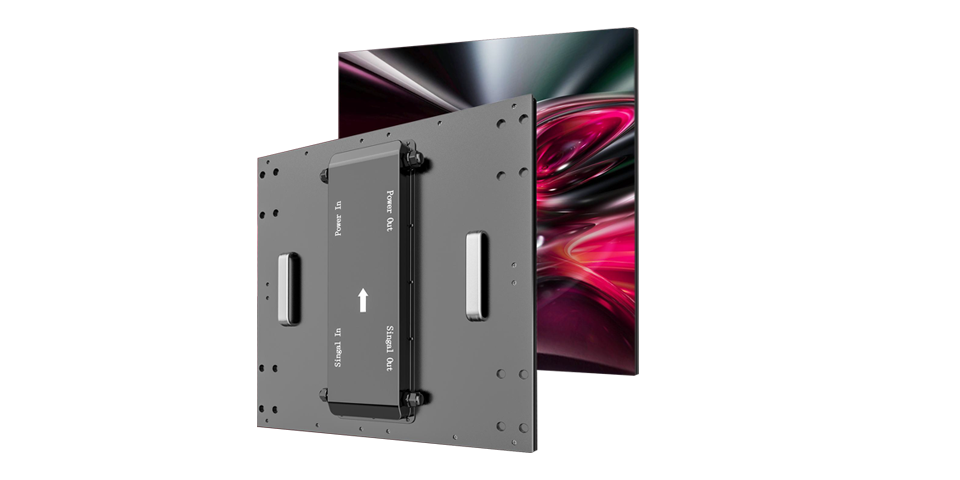

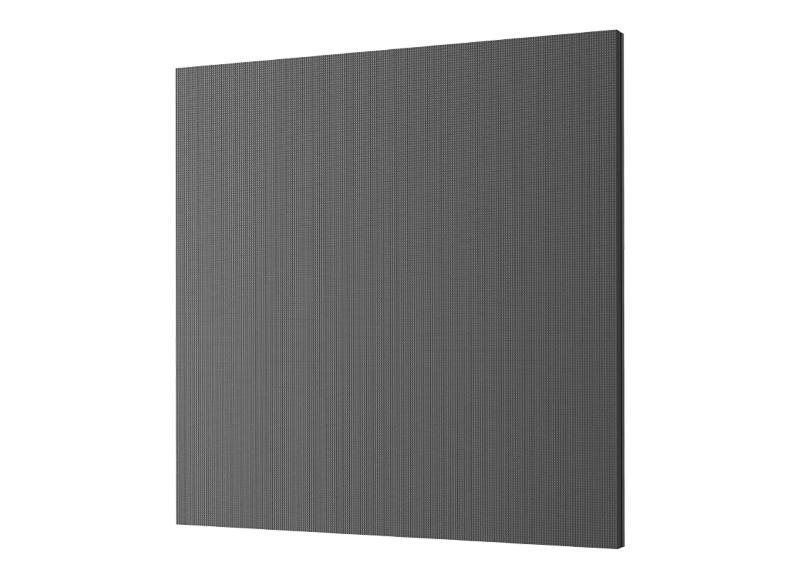

LED互动地砖屏
防水、防尘、防刮花
多种互动方式可选
0.015ms快速响应
轻松实现上方维护和水平调整
传感技术实现内容管理
应用领域：展览会、博物馆、车展、时装秀、酒店舞台、酒吧、电视直播、T台演唱会、商场等
