独家设计，产品独一无二
M-Shine 独家设计，外观简洁，模组侧边锁免螺丝，拆装方便
低功耗、低热量

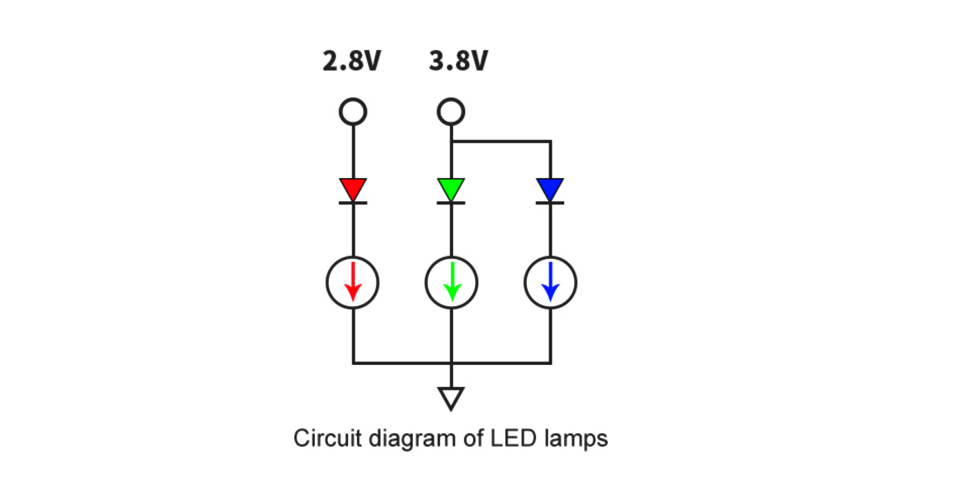

采用共阴技术，RBG分压供电，大幅提高能效

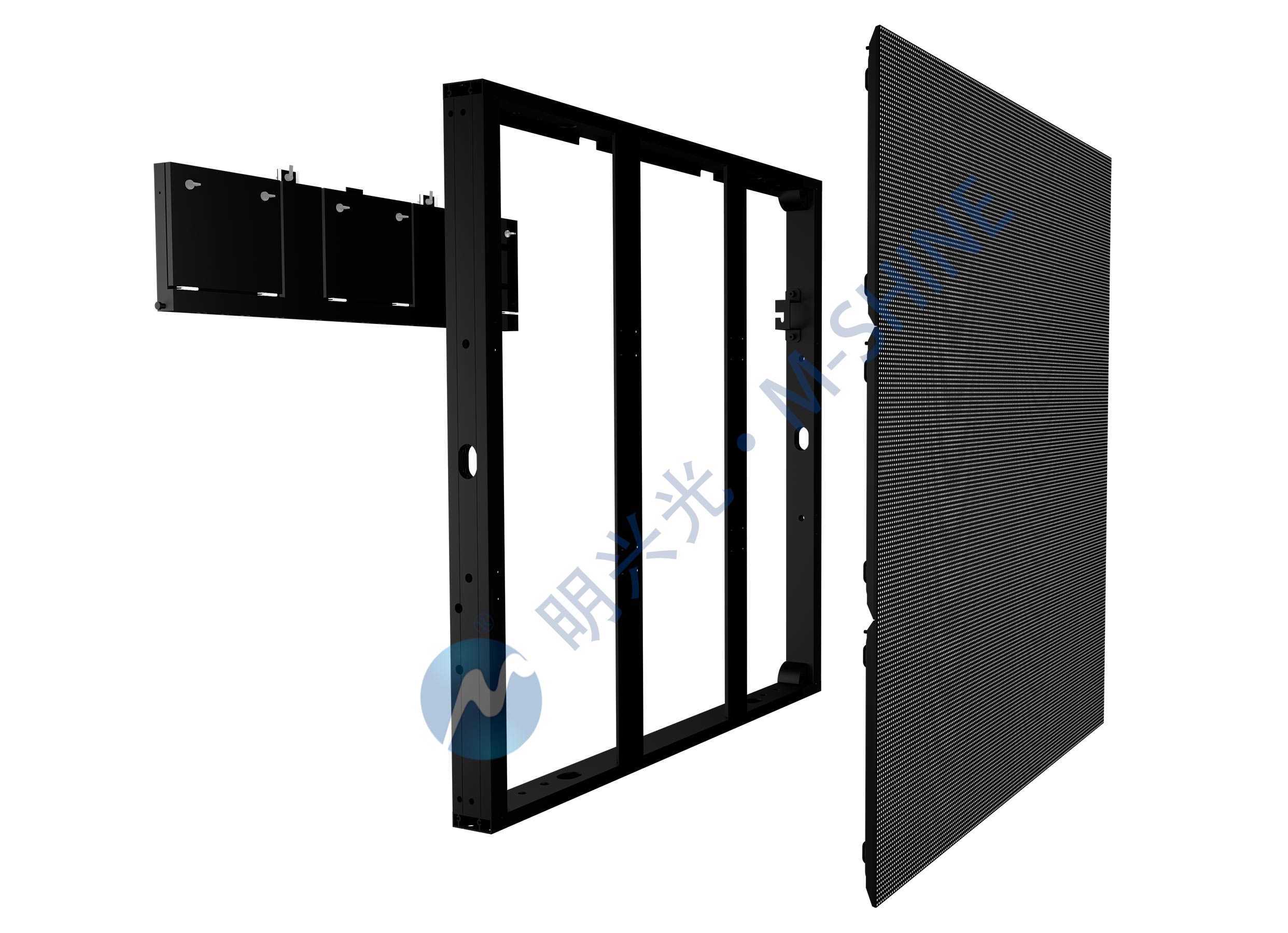

前后维护
2种维护方式，省时省力，维护方便

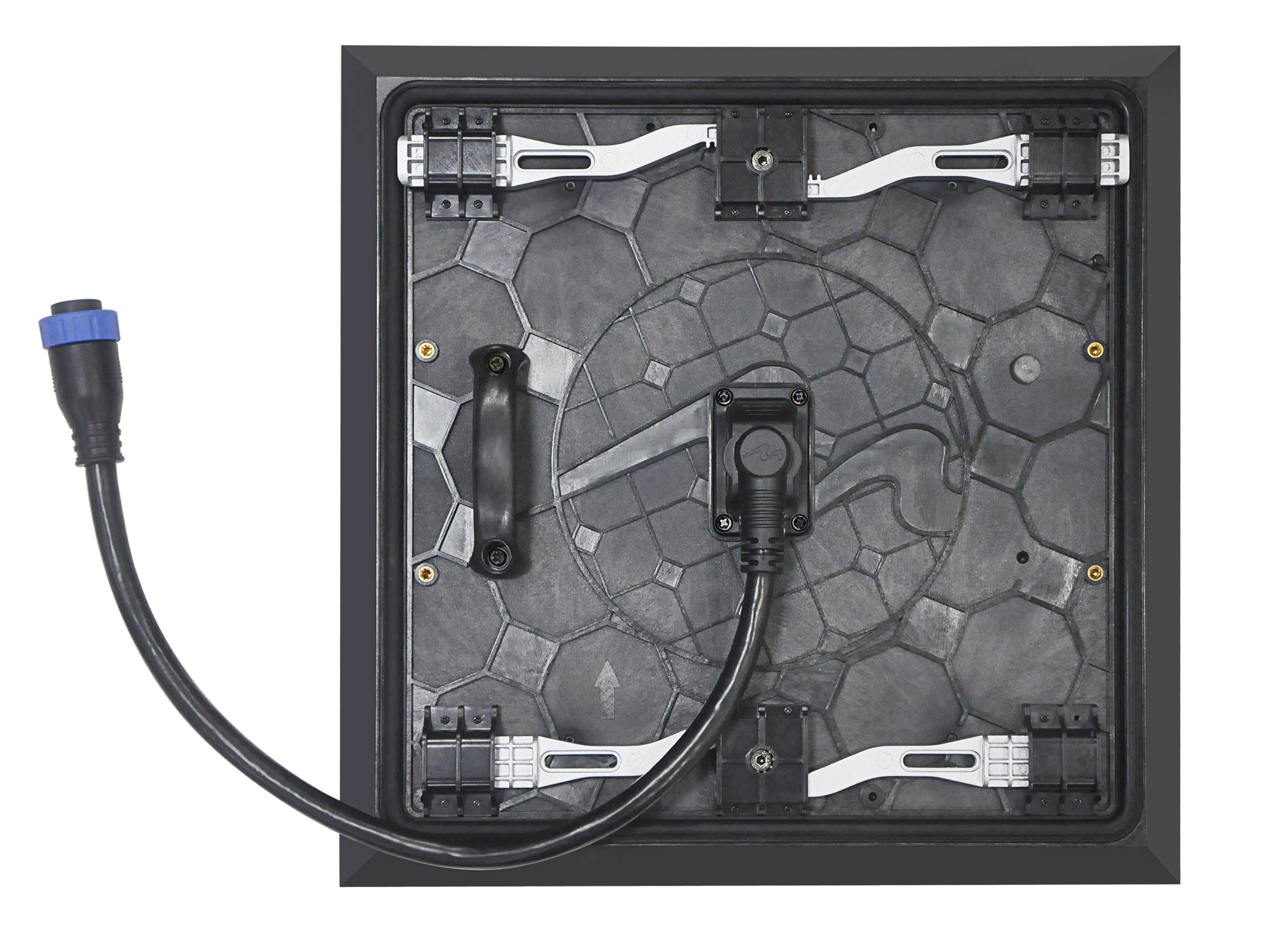

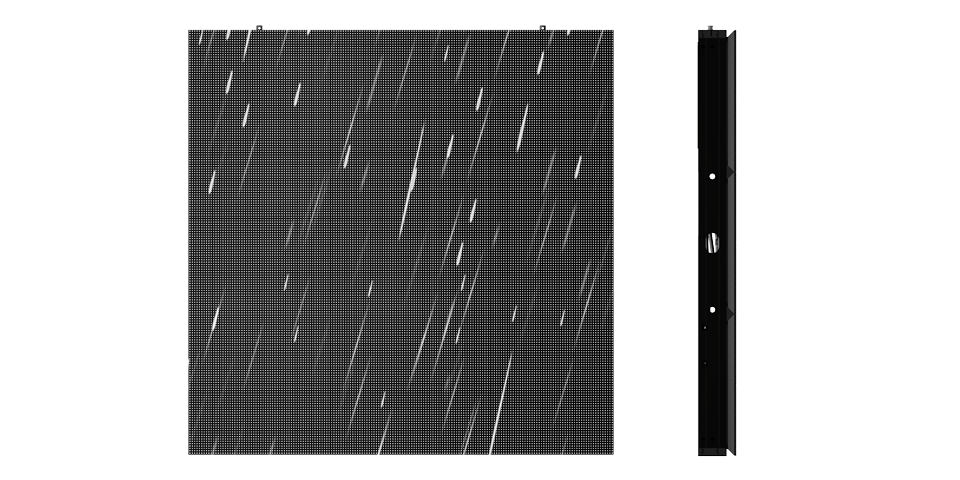

100%防水模块及箱体

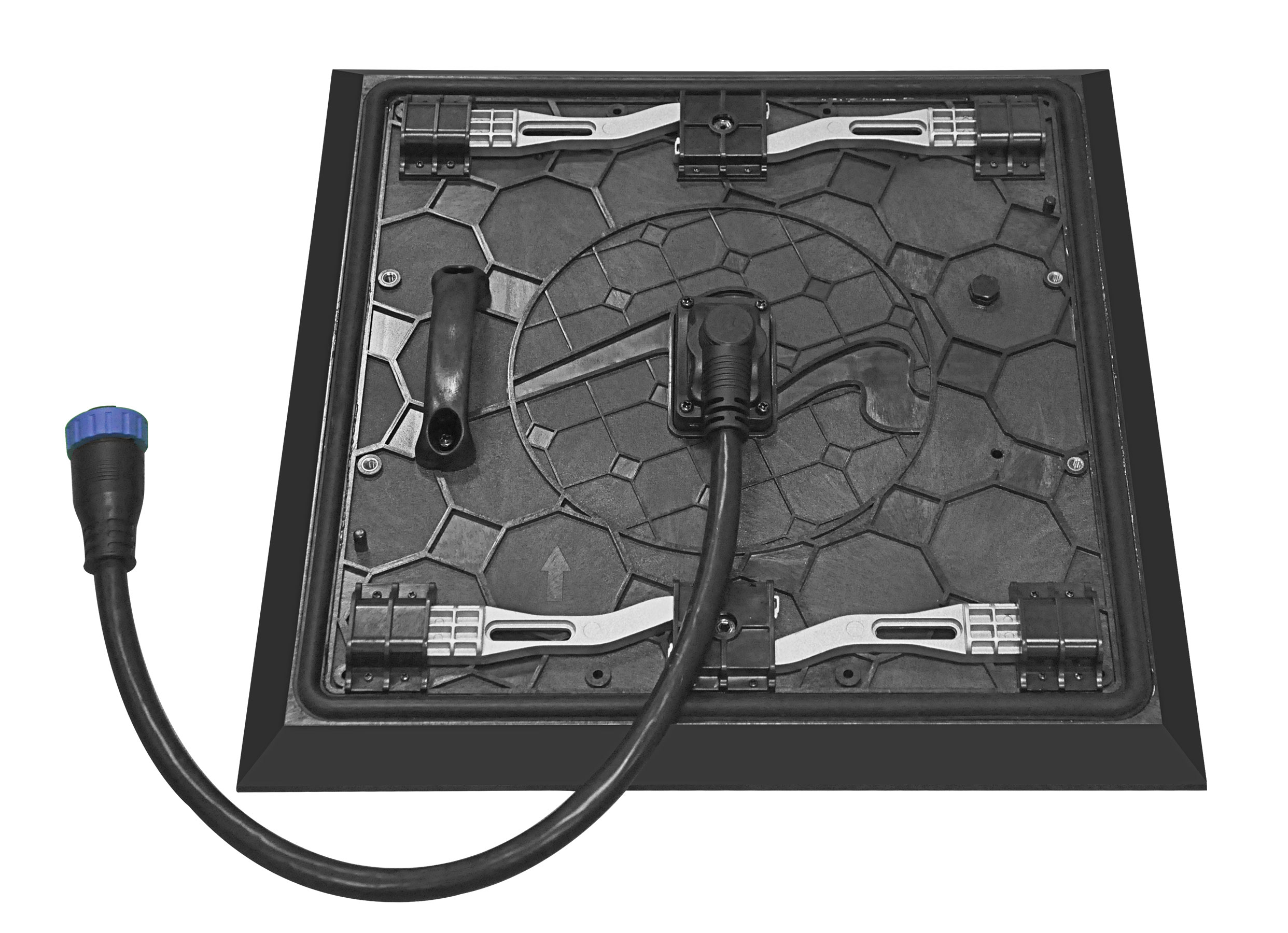

全封闭模组，三合一防水插头，灯脚双液灌胶工艺，IP67卓越防水
斜角设计，快速锁紧

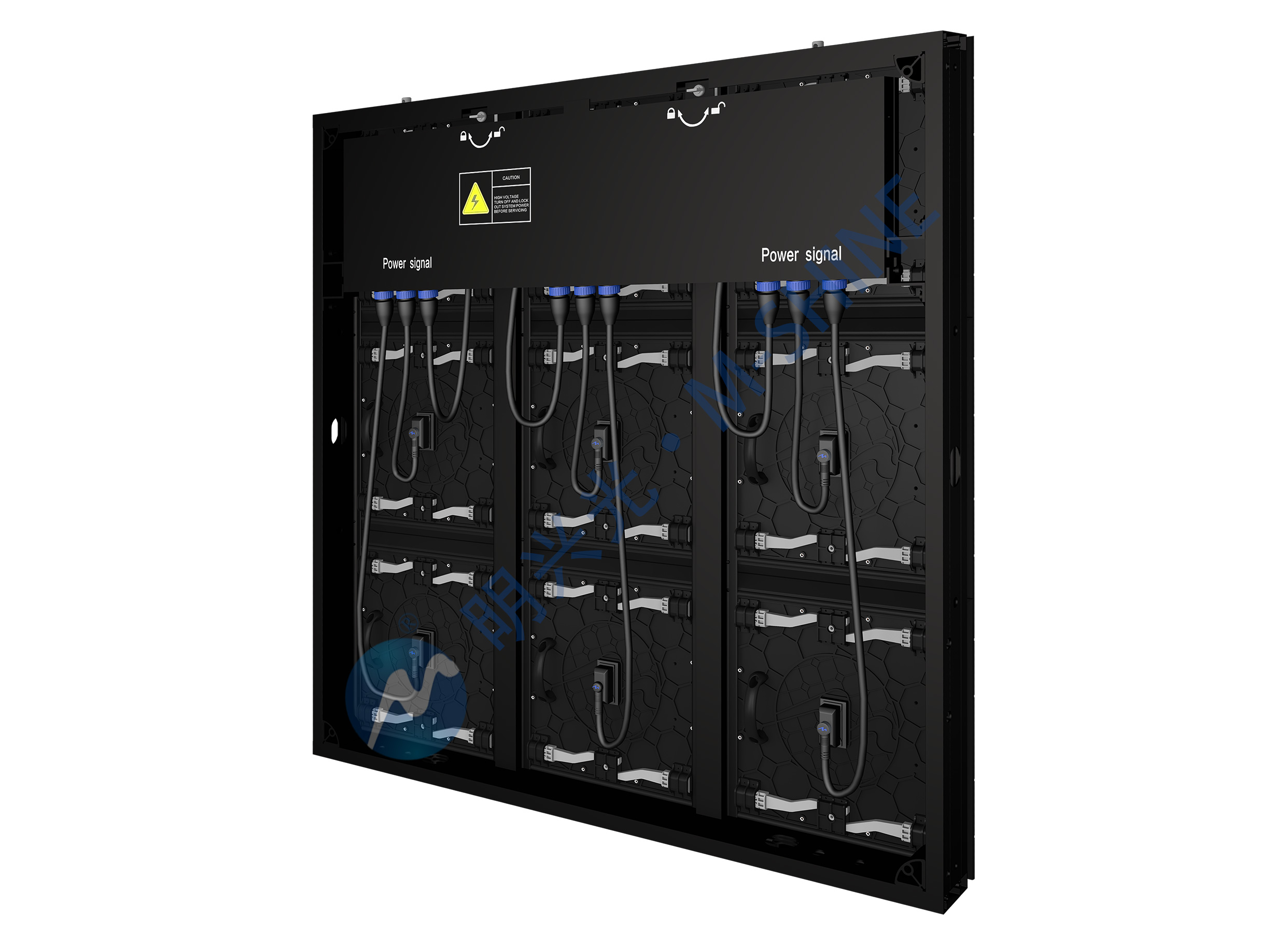

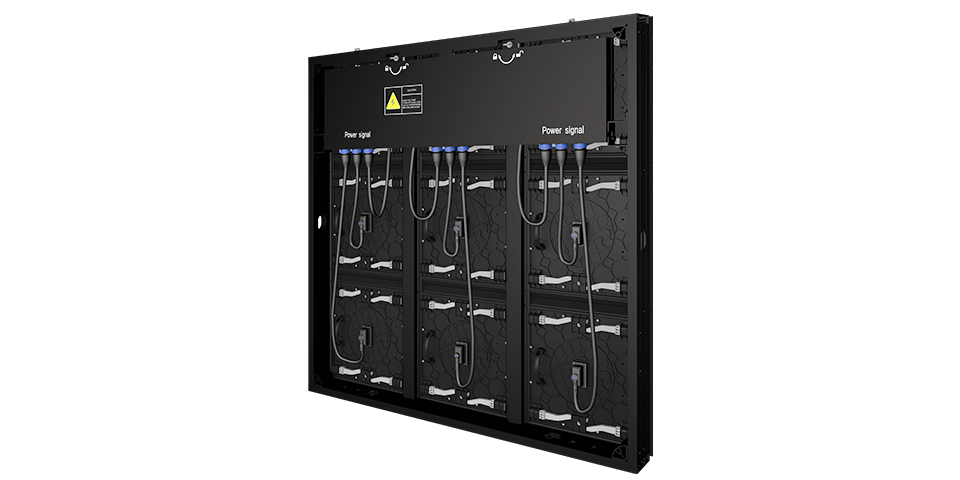

锌合金侧锁，信号线电源线一体化，斜角设计，实现转角设计无缝拼接
安全稳定，使用寿命长
低功耗低热量，更好保护电子元器件，屏幕运行更稳定，整屏更耐用
Rock Plus Series - 100% Waterproof 960 * 960mm Outdoor Front Service Pixel Pitch(mm) 5.33 P6.67 P8 P10 Pixel Density(dots/㎡) 35156 22500 15625 10000 Brightness(cd/㎡) 5500cd 5500cd 5500cd 6000cd LED Lamp 1921 SMD2727 Cabinet Size(mm) 960 * 960 or customized Module Size(mm) 320 * 320 Module Resolution(dots) 60*60 48*48 40*40 32*32 Viewing Distance(m) ≧5m ≧6m ≧8m ≧10m Scan 1/6 scan 1/6 scan 1/4 scan 1/2 scan Module Maximum Power(W) 54W 54W 54W 54W Power distribution(W/cabinet) 570w 570w 570w 570w Actual Max.Power Consumption (W/cabinet) 500w 500w 500w 500w Average Power Consumption (W/cabinet) 200w 200w 200w 200w Die-casting aluminum Cabinet Weight (KG/cabinet) 25 25 25 25 Iron Cabinet Weight(KG/cabinet) 46KG 46KG 50kg 50kg Cabinet Sharing Universal cabinet for all above pixels Angle Splicing Support Cabinet Material Profile Aluminium Pixel Composition 1R1G1B Operating Input Voltage(V) Separate power supply for red and green/blue lights，R:2.8V, GB:3.8V(Mainly 3.8V) Gray Scale ≧14bits Brightness Adjustment 0~255 Refresh Rate Constant Current IC 1920/High Brush IC 3840 Refresh Frame Frenquncy 60Hz Maintenance Front/Rear Cabinet IP IP65 Module IP Front IP67 & Back IP65 Continuous Use Time >72h Life Span 100,000h MTBF >10,000h Blind Spot Rate <0.01% Operating Temperature -20℃～+50℃(Below -20 degrees could be customized) Operating Humidity Outdoor 10%～90%
固装

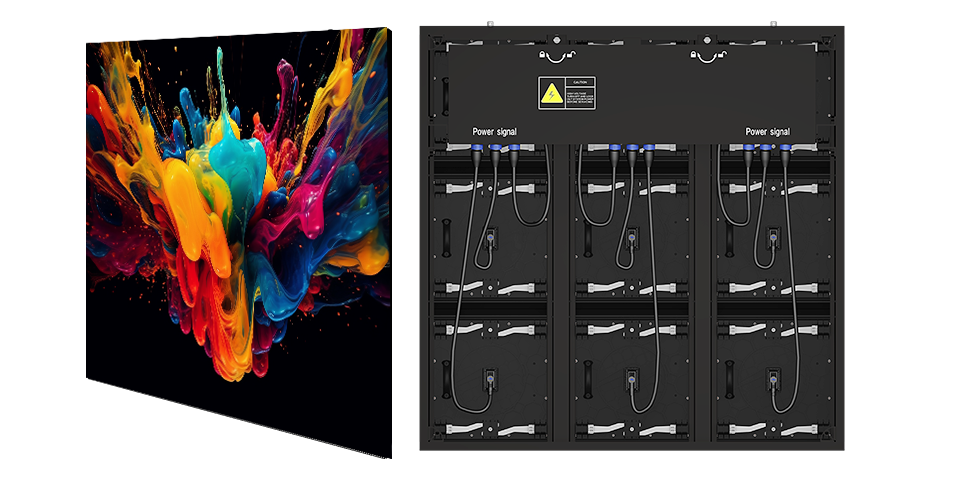

Rock-Plus磐石系列
全防水户外前维护LED显示屏
尺寸：960*960mm及定制
像素间距：P5.33/P6.67/P8/P10
共阴节能
100%防水
45°斜边设计模组，实现无缝拼接
明兴光独家设计，产品独一无二
应用领域：建筑外墙、建筑屋顶、户外广告、户外标牌等
